Specifications
Model: JIS 60kg
Standard: JIS E 1101
Weight: 60.8 kg/m
Material: U71Mn
Length: 6–12m, 12.5–25m, or custom lengths upon request
Size * | Rail height(mm) A | Bottom Width(mm) B | Head Width(mm) C | Web Thickness(mm) t | Weight(kg/m) * |
60kg | 174.00 | 145.00 | 65.00 | 16.50 | 60.8 |

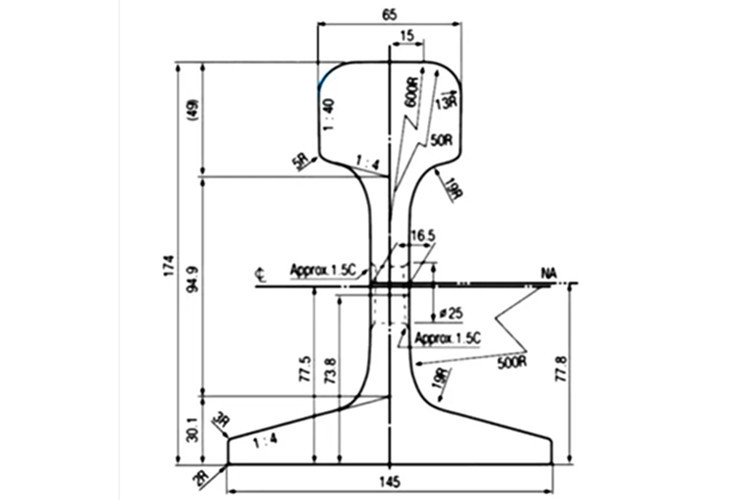

Drawing
Contact Us
Hanzi is a leading rail manufacturer in China. If you are interested in our rails or have any questions, please contact us for further information and a price quote.
The JIS 60kg rail is a high-strength, heavy-duty rail designed for applications subject to extreme loads, with a nominal weight of 60.8 kg/m. It is ideally suited for heavy-haul railways, mining operations, port logistics, and high-speed rail lines. Key material grades include U71Mn high-strength steel (heat-treated to R350 HT specifications for enhanced wear resistance) and 55Q carbon steel (a cost-effective option for moderate-load applications).
Hanzi offers a wide range of rail products—including light rails, heavy rails (such as the JIS 60kg rail), and crane rails—available in various standards and specifications.
