Specifications
Model: ASCE 80
Standard: ASTM A1/AREMA
Weight: 39.82 kg/m (80 lb/yd)
Material: 700
Length: 6–12m, 12.5–25m, or customized lengths upon request
Rail | Standard | Dimensions mm | Section S | Mass m | |||
H | B | C | E | cm² | kg/m | ||
ASCE80 | ASCE | 127 | 127 | 63.5 | 13.89 | 50.55 | 39.68 |

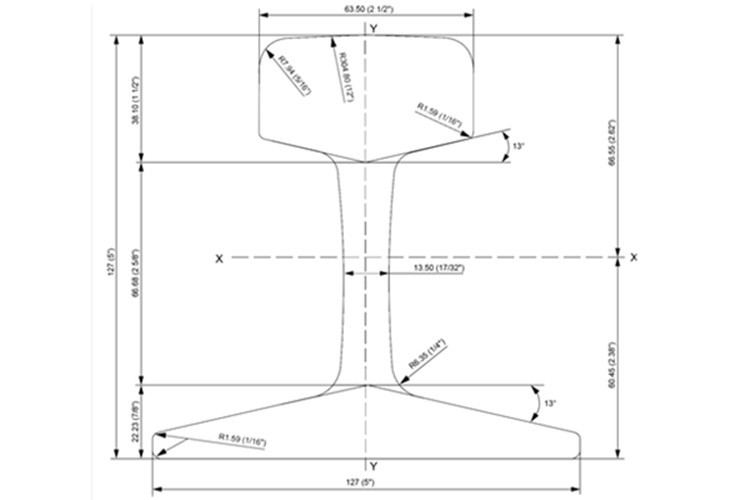

Drawing
Contact Us
Hanzi is China's largest rail manufacturer. If you are interested in our rails or have any questions, please contact us for more information and a quote.
The ASCE 80 heavy rail (also known as 80 lb rail) is a high-strength, corrosion-resistant rail designed specifically for heavy-duty applications. Our ASCE 80 rails and accessories are designed in strict accordance with ASTM A1/AREMA standards, offering superior load-bearing capacity and durability to ensure smooth operations in mining, port terminals, and intermodal transport systems.
Hanzi offers a wide range of rails—including light rails, heavy rails (such as ASCE 80), and crane rails—available in various standards and specifications.
Hanzi is one of China's largest manufacturers of steel sheet piles. It produces high-quality steel sheet piles in various types and sizes, widely used in port construction, offshore breakwaters, deep foundation pit support, integrated pipeline corridors, subways, bridges, tunnels, and other applications.
