Specifications
Model: A65 rail
Standard: DIN 536-1-1991
Weight: 43.1 kg/m
Material: 700 / 900A / 1100
Length: 6–12m, 12.5–25m, or customized lengths upon request
A65 Rail Parameters | |||
Rail Type | Weight(Kg/m) | Material | Length(m) |
A65 | 43.1 | 700/900A/1100 | 10-12 |
Head Width(mm) | Bottom Width(mm) | Rail Height(mm) | Web Thickness |
65 | 175 | 75 | 38 |

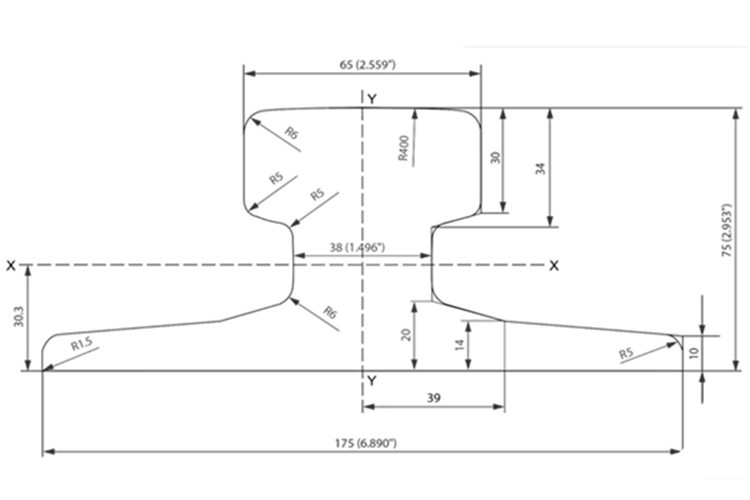

Drawing
Contact Us
Hanzi is China's largest rail manufacturer. If you are interested in our rails or have any questions, please contact us for further information and a quote.
