Specifications
Model: ASCE 85
Standard: ASTM A1/AREMA
Weight: 42.17 kg/m
Material: 900A/1100
Length: 6–12m, 12.5–25m, or customized lengths upon request
Model | DIMENSION | Weight | Material | Length | |||
A(mm) | B(mm) | C(mm) | t(mm) | (KG/M) | (m/PC) | ||
ASCE 85 | 65.09 | 131.76 | 131.76 | 14.29 | 42.17 | 900A/1100 | 12-25 |

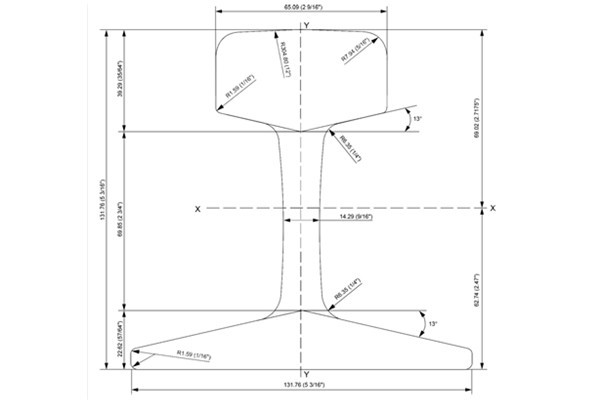

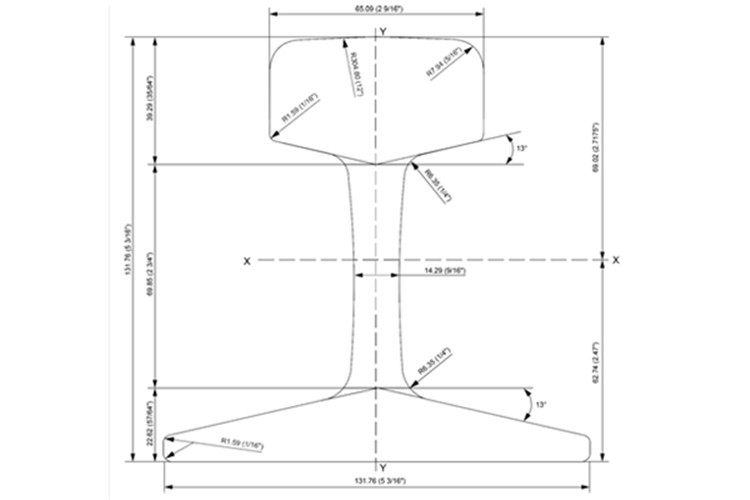

Drawing
Contact Us
Hanzi is China's largest rail manufacturer. If you are interested in our rails or have any questions, please contact us for further information and a quote.
The ASCE 85 heavy-duty rail (also known as 85 lb rail) is a high-strength, corrosion-resistant rail designed specifically for heavy-load applications. Hanzi’s ASCE 85 rails are designed in strict accordance with the ASTM A1 standard to meet the most rigorous demands of heavy-haul freight networks, industrial crane systems, and high-traffic railway infrastructure.
Hanzi offers a wide range of rails—including light rails, heavy rails (such as ASCE 85), and crane rails—available in various standards and specifications.
