Specifications
Model: A75 rail
Standard: DIN 536-1-1991
Weight: 56.2 kg/m
Material: 700 / 900A / 1100
Length: 6–12m, 12.5–25m, or customized lengths upon request
A75 Rail Parameters | |||
Rail Type | Weight(Kg/m) | Material | Length(m) |
A75 | 56.2 | 700/900A/1100 | 10-12 |
Head Width(mm) | Bottom Width(mm) | Rail Height(mm) | Web Thickness |
75 | 200 | 85 | 45 |

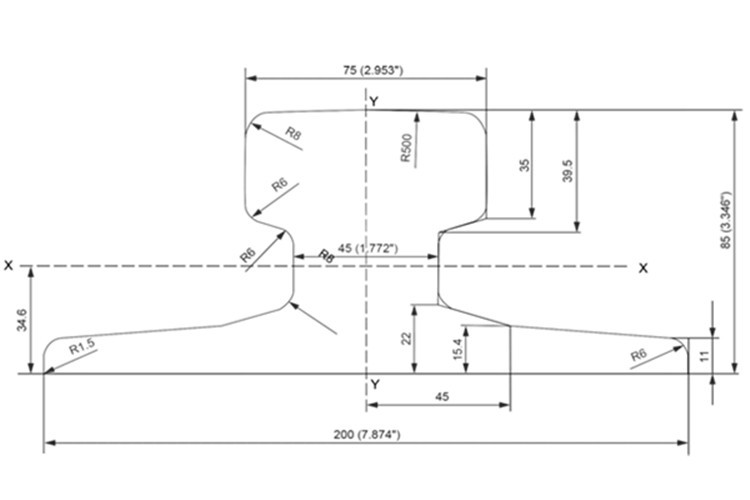

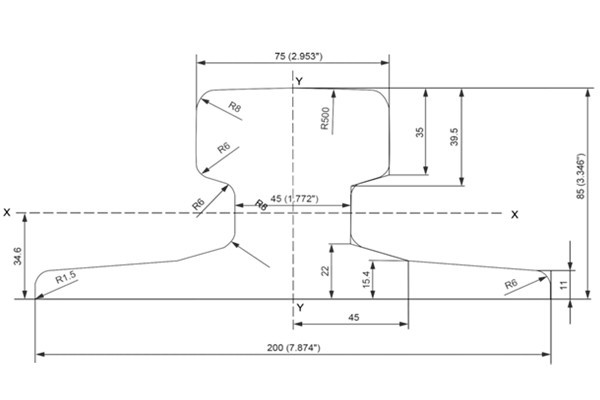

Drawing
