Specifications
Model: JIS 15kg
Standard: JIS E 1103-91
Weight: 15.2 kg/m
Material: 55Q (Medium carbon steel)
Length: 6–12m, 12.5–25m, or customized lengths upon request
Size * | Rail height(mm) A | Bottom Width(mm) B | Head Width(mm) C | Web Thickness(mm) t | Weight(kg/m) * |
15kg | 79.37 | 79.37 | 42.86 | 8.33 | 15.20 |

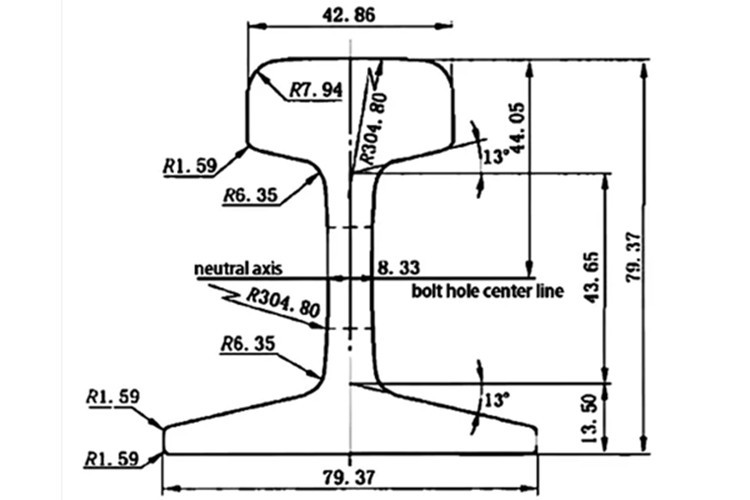

Drawing
Contact Us
Hanzi is China's largest rail manufacturer. If you are interested in our rails or have any questions, please contact us for more information and a quote.
The JIS 15kg light rail is designed to meet the rigorous requirements of JIS E 1103-91 (Japanese Industrial Standards), offering a reliable solution for medium-load railway applications. Manufactured from Q235B carbon steel (equivalent to JIS SS400), it features excellent weldability and corrosion resistance, making it suitable for various industrial and mining environments.
Hanzi offers a wide range of rails—including light rails (such as the JIS 15kg rail), heavy rails, and crane rails—available in various standards and specifications.
