Specifications
Model: 50E2
Standard: BS11:1985
Weight: 49.97 kg/m
Material: R260/R350HT
Length: 6–12 meters, 12.5–25 meters, or customized lengths upon request
Model | DIMENSION | Weight | Material | Length | |||
A(mm) | B(mm) | C(mm) | t(mm) | (KG/M) | (m/PC) | ||
50E2 rail | 72 | 151 | 140 | 15 | 49.97 | R260/R350HT | 12-25 |

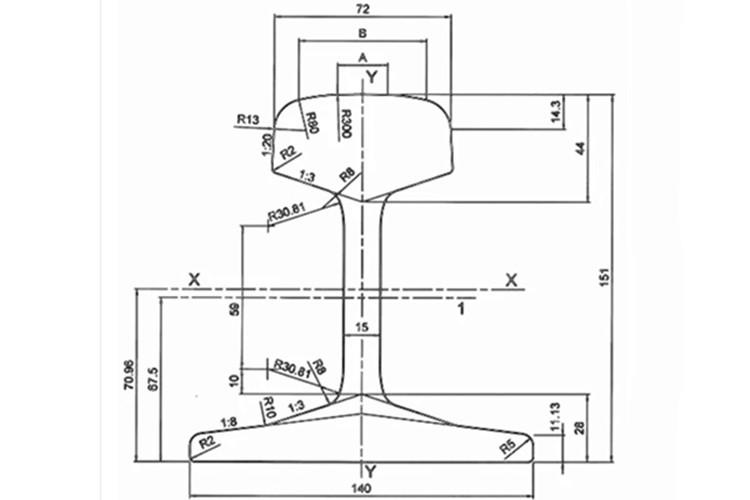

Drawing
Contact Us
Hanzi is China's largest rail manufacturer. If you are interested in our rails or have any questions, please contact us for further information and a quote.
The 50E2 rail (also known as the 50EB-T type) is a high-quality heavy rail designed to meet the rigorous demands of European mainline railways, heavy-haul freight networks, and heavy-duty industrial systems. Compliant with EN 13674-1 and EN 13674-4 standards and manufactured from advanced pearlitic steel (R260, R350HT), this rail offers exceptional wear resistance, fatigue strength, and dynamic load-bearing capacity.
Hanzi offers a wide range of rails—including light rails, heavy rails (such as the 50E2), and crane rails—available in various standards and specifications.
Hanzi is one of China's largest manufacturers of steel sheet piles. It produces high-quality steel sheet piles in various types and sizes, widely used in port construction, offshore breakwaters, deep foundation pit support, integrated pipeline corridors, subways, bridges, tunnels, and other applications.
