Specifications
Model: 55E1
Standard: BS11:1985
Weight: 56.03 kg/m
Material: R260/R350HT
Length: 6–12 meters, 12.5–25 meters, or customized lengths upon request
Model | DIMENSION | Weight | Material | Length | |||
A(mm) | B(mm) | C(mm) | t(mm) | (KG/M) | (m/PC) | ||
55E1 RAIL | 62 | 155 | 134 | 19 | 56.03 | R260/R350HT | 12-25 |

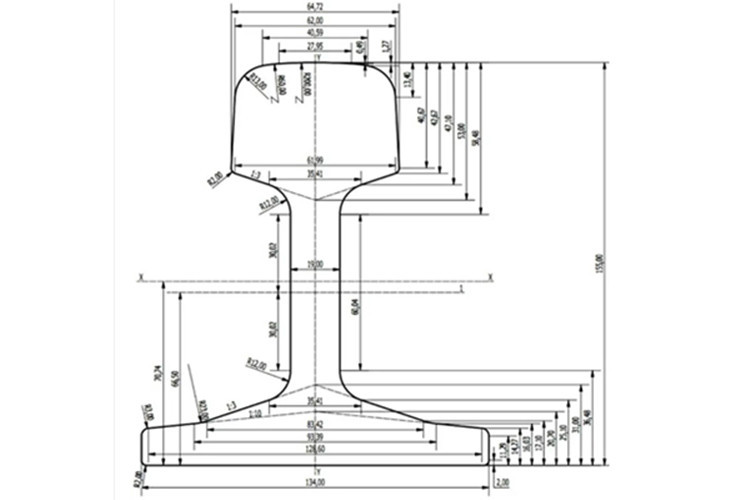

Drawing
Contact Us
Hanzi is China's largest rail manufacturer. If you are interested in our rails or have any questions, please contact us for more information and a quote.
The 55E1 rail (often referred to as "U 55 rail" in older national standards) is a heavy-duty railway rail primarily used for specialized heavy-haul transport, industrial applications, and urban rail transit. It is a heavy rail that complies with EN standards and is considered a less common rail type.
Hanzi offers a wide range of rails—including light rails, heavy rails (such as the 55E1), and crane rails—available in various standards and specifications.
Hanzi is one of China's largest manufacturers of steel sheet piles. It produces high-quality steel sheet piles in various types and sizes, widely used in port construction, offshore breakwaters, deep foundation pit support, integrated pipeline corridors, subways, bridges, tunnels, and other applications.
