Specifications
Model: 54E5
Standard: BS11:1985
Weight: 54.42 kg/m (119.98 lb/yd)
Material: R260/R350HT
Length: 6–12 meters, 12.5–25 meters, or custom lengths upon request
Size | Rail height(mm) | Bottom Width(mm) | Head Width(mm) | Web Thickness(mm) | Weight(kg/m) |
A | B | C | t | ||
54E5(54E1AHC) | 159 | 140 | 70.2 | 16 | 54.42 |

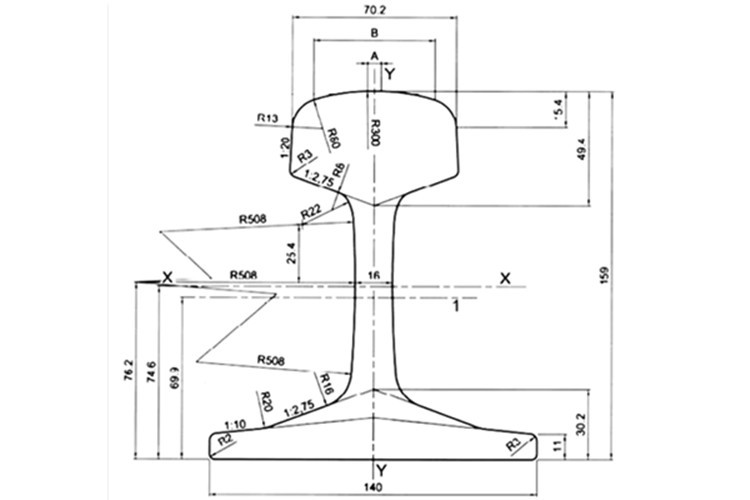

Drawings
Contact Us
Hanzi is China's largest rail manufacturer. If you are interested in our rails or have any questions, please contact us for more information and a quote.
The 54E5 rail (also known as 54E1 AHC) is a high-performance, heavy-duty rail designed to meet the rigorous demands of heavy-haul freight networks, urban rail transit systems, and industrial heavy-duty applications. Compliant with EN 13674-1 (mechanical properties) and EN 13674-4 (dimensions) standards, this rail achieves a unique balance of strength, durability, and dimensional precision.
Hanzi offers a wide range of rails—including light rails, heavy rails (such as the 54E5), and crane rails—available in various standards and specifications.
