Specifications
Model: JIS 9kg
Standard: JIS E 1101
Weight: 8.94 kg/m
Material: Q235B (low-carbon steel) or 55Q (medium-carbon steel)
Length: 6–12m, 12.5–25m, or customized lengths upon request
Size * | Rail height(mm) A | Bottom Width(mm) B | Head Width(mm) C | Web Thickness(mm) t | Weight(kg/m) * |
9kg | 63.50 | 63.50 | 32.10 | 5.90 | 8.94 |

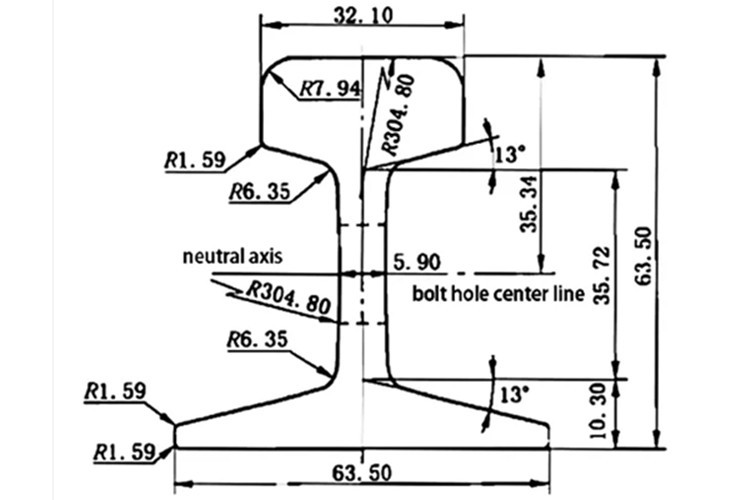

Drawing
Contact Us
Hanzi is China's largest rail manufacturer. If you are interested in our rails or have any questions, please contact us for more information and a quote.
The JIS 9kg rail is a light rail profile defined by the Japanese Industrial Standard (JIS E 1101), widely used in light rail systems, industrial tracks, and narrow-gauge applications.
Hanzi offers a wide range of rails—including light rails (such as the JIS 9kg rail), heavy rails, and crane rails—available in various standards and specifications.
