Specifications
Model: KP70 Rail
Standard: Russian Standard GOST 4121-96
Weight: 52.8 kg/m
Material: 50Mn, U71Mn
Length: 6–12m, 12.5–25m, or custom lengths upon request
Size * | Rail height(mm) A | Bottom Width(mm) B | Head Width(mm) C | Web Thickness(mm) t | Weight(kg/m) * |
KP70 | 120 | 120 | 70 | 28 | 52.8 |

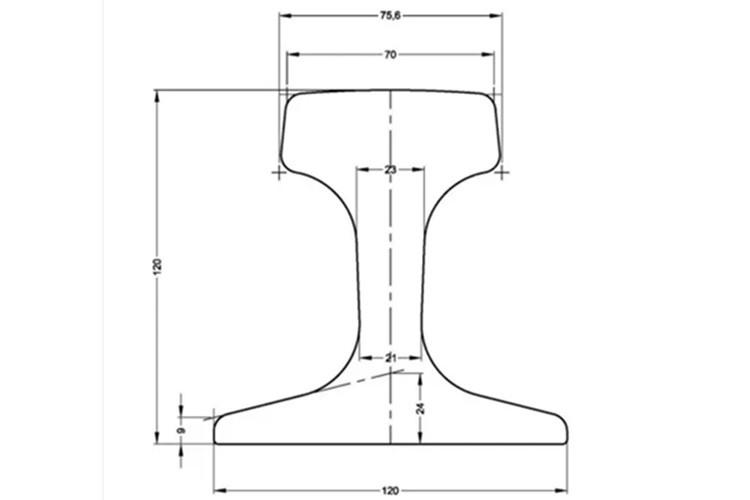

Drawing
Contact Us
Hanzi is China's largest rail manufacturer. If you are interested in our rails or have any questions, please contact us for more information and a quote.
The GOST KP70 is a type of crane rail commonly used for overhead cranes, port gantry cranes, and heavy-duty industrial track projects. These rails are manufactured from rail-grade steel (such as U71Mn) and undergo standard factory testing; supervision documents for loading are provided for export shipments.
Hanzi offers a wide range of rails—including light rails, heavy rails (such as the KP70), and crane rails—available in various standards and specifications.
