Cold Rolled Z Sheet Piles

Description

Z-type steel sheet piles are called "Z" because the individual piles are roughly horizontally stretched "Z"-shaped. To ensure good shear transfer and improve the strength-to-weight ratio, the interlocking piles are positioned as far away from the neutral axis as possible.

Hanzi offers Z-type cold-rolled steel sheet piles in standard cross-sections and lengths, as well as custom sizes for medium and large projects.

Retaining walls, cofferdams, parking lots, environmental barriers, and port walls are just a few of the many applications for our Z-type cold-rolled steel sheet piles.

Specifications

Specifications

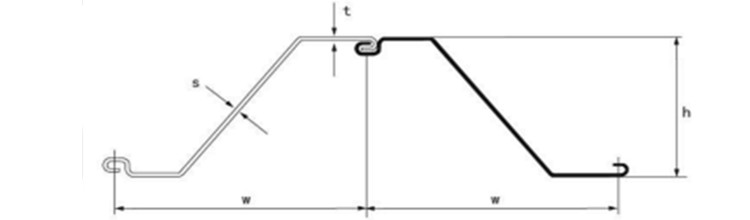

Section	Dimensions				Mass		Moment of inertia	Modulus of Section
	Width	Height	Thickness		Per pile	Wall
	w	h	t	s	Per pile	Wall
	mm	mm	mm	mm	kg/m	kg/m2	cm4/m	cm3/m
GPZ 4-770	770	213	5	5	38.2	49.6	4770	448
GPZ 5-850	850	253	5	5	41.1	48.4	6420	507
GPZ 5-770	770	214	6	6	45.8	59.4	5720	534
GPZ 6-850	850	254	6	6	49.2	57.9	7671	604
GPZ 6-900	900	254	6	6	51.5	57.3	7757	611
GPZ 6-725	725	269	5	5	37.7	52	8240	612
GPZ 6-770	770	215	7	7	53.3	69.2	6660	619
GPZ 7-725	725	270	6	6	45.1	62.2	9890	730
GPZ 8-857	857	300	6	6	54.3	63.3	11502	766
GPZ 8-676	676	312	5	5	37.7	55.8	12065	772
GPZ 8-850	850	255	7	7	60.9	71.6	10375	835
GPZ 8-550	550	200	8	8	52.3	95	8350	835
GPZ 8-725	725	271	7	7	52.4	72.3	11535	846
GPZ 9-857	857	301	7	7	63.2	73.7	13376	888
GPZ 9-850	850	318	6	6	54.4	64	14381	904
GPZ 9-676	676	313	6	6	45.1	66.7	14444	922
GPZ 9-550	550	200	9	9	58.9	107	9400	940
GPZ 9-621	621	347	5	5	37.7	60.7	16318	940
GPZ 10-807	807	351	6	6	53.9	66.8	16989	968
GPZ 10-857	857	302	8	8	72.1	84	15249	1009
GPZ 10-850	850	319	7	7	65.1	76.6	16386	1027
GPZ 11-676	676	314	7	7	52.4	77.5	16815	1069
GPZ 11-850	850	320	8	8	73.2	86.2	17639	1102
GPZ 11-621	621	348	6	6	45.1	72.6	19544	1122
GPZ 11-807	807	352	7	7	62.6	77.6	19774	1123
GPZ 11-857	857	303	9	9	81	94.4	17123	1131
GPZ 12-850	850	379	7	7	66.7	78.5	22973	1212
GPZ 12-743	743	407	6	6	53.9	72.5	25074	1233
GPZ 13-807	807	353	8	8	71.4	88.4	22546	1277
GPZ 13-770	770	344	9	9	76.1	99	22360	1300
GPZ 13-670	670	303	9.5	9.5	72	107	19700	1300
GPZ 13-621	621	349	7	7	52.4	84.4	22756	1302
GPZ 13-700	700	315	9.5	9.5	74	105.7	20540	1305
GPZ 13-850	850	380	8	8	75.1	88.3	24831	1307
GPZ 13 10/10	670	304	10	10	75.2	112	20480	1350
GPZ 14-770	770	345	9.5	9.5	79.5	103	23300	1355
GPZ 13-700 10/10	700	316	10	10	77.2	110.2	21370	1355
GPZ 14-675	675	399	6.5	6.5	55.5	82.2	27251	1370
GPZ 14-670	670	304	10.5	10.5	78.3	117	21300	1400
GPZ 14-700 10/10	770	345	10	10	82.9	108	24240	1405
GPZ 14-700	700	316	10.5	10.5	80.3	114.7	22190	1405
GPZ 14-807	807	354	9	9	80.2	99.3	25318	1431
GPZ 14-743	743	408	7	7	62.6	84.3	29179	1432
GPZ 15-675	675	399	7	7	59.7	88.5	29281	1470
GPZ 15-671	671	451	6	6	53.9	80.3	34340	1525
GPZ 16-675	675	400	7.5	7.5	64	94.8	31325	1570
GPZ 16-808	808	355	10	10	89.2	110.3	27850	1570
GPZ 16-744	744	409	8	8	71.4	96	33263	1628
GPZ 16-900	900	400	8	8	82.6	91.7	32711	1635
GPZ 17-630	630	379	8.5	8.5	68.4	109	31580	1665
GPZ 17-675	675	400	8	8	68.2	101.1	33350	1670
GPZ 17-700	700	419	8.5	8.5	73.1	104	36230	1730
GPZ 18-671	671	452	7	7	62.6	93.3	39954	1770
GPZ 18-685	685	401	8.5	8.5	72.3	105.6	35558	1780
GPZ 18-630a	630	380	9.5	9.5	74.4	118	34200	1800
GPZ 18-700	700	420	9	9	76.5	109	37800	1800
GPZ 18-630b	630	380	8	8	62.9	99.8	34293	1805
GPZ 18-744	744	410	9	9	80.2	107.8	37387	1825
GPZ 18-900	900	401	9	9	92.6	102.9	36677	1829
GPZ 18-800	800	449	8.5	8.5	80.7	100.9	41320	1840
GPZ 18 10/10	630	381	10	10	77.8	123	35540	1870
GPZ 19-700a	700	420	9.5	9.5	80	114	39380	1870
GPZ 19-685	685	401	9	9	76.6	111.8	37580	1880
GPZ 19-750	750	420.5	10.5	10.5	93.5	124.8	40296	1916
GPZ 19-630	630	381	10.5	10.5	81	129	36980	1940
GPZ 19-700b	700	421	10	10	83.5	119	40960	1945
GPZ 20-685	685	402	9.5	9.5	80.8	118	39595	1970
GPZ 20-650	650	437	8	8	70.8	108.8	43293	1980
GPZ 20-800	800	450	9.5	9.5	88.6	110.7	45050	2000
GPZ 20-745	745	410	10	10	89.2	119.8	41060	2000
GPZ 20-672	672	453	8	8	71.4	106.3	45537	2013
GPZ 20-900	900	402	10	10	102.6	114	40616	2021
GPZ 21-685	685	402	10	10	85.1	124.2	41601	2070
GPZ 21-650	650	438	8.5	8.5	75.1	115.5	45912	2100
GPZ 22-800	800	451	10.5	10.5	96.4	120.5	48790	2165
GPZ 22-650	650	438	9	9	79.4	122.1	48521	2220
GPZ 22-630	630	380	10	10	78.7	124.9	42531	2239
GPZ 23-672	672	454	9	9	80.2	119.3	51180	2259
GPZ 23-800	800	474	10	10	94.6	118.2	55260	2330
GPZ 23-650	650	439	9.5	9.5	83.6	128.6	51120	2330
GPZ 24-700	700	459	11.2	11.2	95.7	136	55820	2430
GPZ 25-650	650	439	10	10	87.9	135.2	53709	2450
GPZ 25-630	630	426	11.4	11.4	91.5	145	52250	2455
GPZ 25-673	673	455	10	10	89.2	132.5	56200	2470
GPZ 25-800	800	475	11	11	102.6	128.2	59410	2500
GPZ 26-700	700	460	12.2	12.2	102.9	147	59720	2600
GPZ 26-675	675	440	10.5	10.5	95.9	142.1	57410	2620
GPZ 26-630	630	427	12.2	12.2	97.8	155	55736	2621
GPZ 26-750	750	452	12	12	113.8	151.8	59665	2640
GPZ 27-800	800	476	12	12	110.5	138.1	63570	2670
GPZ 27-630	630	380	12	12	94.4	149.8	50765	2672
GPZ 27-675	675	440	11	11	99.8	147.9	60043	2730
GPZ 28-630	630	428	13.2	13.2	104.4	161	58968	2761
GPZ 28-700	700	461	12	12	110	157	64048	2785
GPZ 28-750a	750	453	13	13	124.6	166.2	63273	2794
GPZ 28-750b	750	509	10.5	10.5	100.8	134.4	71540	2810
GPZ 29-675	675	441	11.5	11.5	104.4	154.6	62667	2850
GPZ 29-700	700	461	13.2	13.2	116.5	166.4	65344	2935
GPZ 30-675	675	441	12	12	108.9	161.3	65281	2960
GPZ 30-750	750	510	11.5	11.5	108.7	145	76670	3005
GPZ 31-675	675	442	12.7	12.7	115.2	170.7	68927	3120
GPZ 32-675	675	487	11	11	108.3	160.5	77367	3180
GPZ 32-750	750	511	12.5	12.5	116.7	155.6	81800	3200
GPZ 33-675	675	488	11.5	11.5	113.1	167.5	80750	3320
GPZ 34-750	750	491	13	13	132.2	176.3	84085	3425
GPZ 34-630	630	459	13.5	13.5	115.5	183	78700	3430
GPZ 35-675	675	488	12	12	117.8	174.6	84121	3450
GPZ 36-675	675	489	12.5	12.5	122.5	181.5	87473	3580
GPZ 36-700N	700	499	12.5	12.5	118.6	169	89610	3590
GPZ 36-630	630	460	14.3	14.3	122.2	194	82800	3600
GPZ 36-750	750	492	14	14	141.3	188.5	89341	3632
GPZ 37-700	700	499	13	13	124.2	177	92400	3705
GPZ 37-675	675	489	13	13	127.3	188.5	90830	3720
GPZ 38-700N	700	500	13.5	13.5	126.4	181	94840	3795
GPZ 38-630	630	461	15	15	129.1	205	87476	3795
GPZ 39-675	675	490	13.5	13.5	132	195.5	94167	3850
GPZ 39-700	700	500	13.7	13.7	131.9	188	97500	3900
GPZ 40-675	675	490	14	14	136.6	202.4	97493	3980
GPZ 40-700N	700	550	13.8	13.8	134.2	192	110037	4010
GPZ 41-700	700	550	14	14	139.5	199	113788	4137
GPZ 42-700N	700	550	14.2	14.2	142.1	203.1	115670	4215
GPZ 44-700N	700	550	14.5	14.,5	149.9	214.2	119005	4413
GPZ 46-700N	700	525	15.2	15.2	157.7	225.3	121251	4626
GPZ 46-580	580	540	14.2	14.2	132.6	229	124718	4628
GPZ 48-700	700	550	15.2	15.2	158.5	226.4	132197	4815
GPZ 48-580	580	570	15	15	139.6	241	137244	4824
GPZ 50-580	580	580	16	16	146.7	252.9	145666	5032
GPZ 50-700	700	530	16	16	166.3	237.5	133475	5046
GPZ 52-700	700	550	16	16	167.7	239.6	143752	5236
