Omega type sheet piles, also known as disc-type sheet piles, are a versatile and widely used sheet pile solution. They resemble U-shaped sheet piles, but feature interlocking Z-shaped sheet piles on both sides.
Hanzi offers Omega type sheet piles in standard cross-sections and lengths, as well as custom sizes for medium and large projects.
Our Omega sheet piles can be used for tetaining walls, cofferdams, parking lots, environmental barriers, and port walls
Specifications
Section | Dimensions | Mass | Moment of inertia | Modulus of Section | |||
Width | Height | Thickness | Per pile | Wall | |||

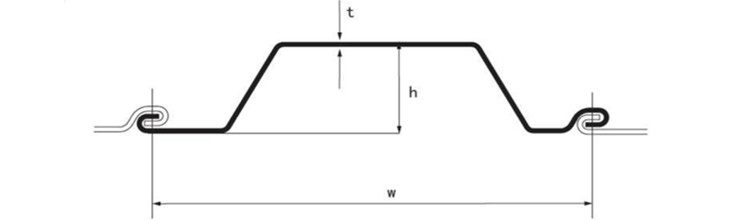

w | h | t | |||||
mm | mm | mm | kg/m | kg/m2 | cm4/m | cm3/m | |
GPL 333-3 | 333 | 37 | 3 | 10.78 | 32.39 | 84 | 42 |
GPL 333-3.5 | 333 | 38 | 3.5 | 12.58 | 37.77 | 98 | 48 |
GPL 333-4 | 333 | 39 | 4 | 14.38 | 43.18 | 112 | 54 |
GPL 333-5 | 333 | 74 | 5 | 21.66 | 65 | 642 | 167 |
GPL 333-6 | 333 | 75 | 6 | 25.9 | 77.77 | 766 | 196 |
GPL 434-3.5 | 434 | 38 | 3.5 | 14.39 | 33.15 | 98 | 52 |
GPL 494-5 | 494 | 74 | 5 | 28.02 | 56.72 | 621 | 156 |
GPL 494-6 | 494 | 75 | 6 | 33.53 | 67.88 | 747 | 186 |
GPL 600-3 | 600 | 127 | 3 | 19.73 | 32.9 | 1038 | 156 |
GPL 600-3.5 | 600 | 128 | 3.5 | 23.08 | 38.3 | 1215 | 183 |
GPL 600-4 | 600 | 128 | 4 | 26.15 | 43.58 | 830 | 124 |
GPL 600-5 | 600 | 129 | 5 | 32.72 | 54.1 | 1728 | 257 |
GPL 600-6 | 600 | 130 | 6 | 38.8 | 64.6 | 2067 | 306 |
GPL 660-3 | 660 | 89 | 3 | 19.4 | 29.4 | 500 | 112 |
GPL 660-4 | 660 | 90 | 4 | 25.8 | 39.2 | 666 | 147 |
GPL 660-5 | 660 | 91 | 5 | 32.2 | 48.8 | 831 | 181 |
GPL 700-4 | 700 | 146 | 4 | 30.8 | 44 | 1945 | 265 |
GPL 700-5 | 700 | 148 | 5 | 39.4 | 56.2 | 2576 | 343 |
GPL 700-6 | 700 | 148 | 6 | 46.2 | 66 | 3080 | 410 |
GPL 700-7 | 700 | 150 | 7 | 54.34 | 77.6 | 3591 | 474 |
GPL 700-7.5 | 700 | 151 | 7.5 | 58.22 | 83.17 | 3846 | 507 |
GPL 700-8 | 700 | 151 | 8 | 61.9 | 88.45 | 4100 | 540 |
GPL 711-3 | 711 | 125 | 3 | 23.5 | 33.1 | 1244 | 199 |
GPL 711-4 | 711 | 126 | 4 | 31.3 | 44 | 1655 | 261 |
GPL 711-5 | 711 | 127 | 5 | 39 | 54.9 | 2063 | 322 |
GPL 750a-4 | 750 | 250 | 4 | 37.4 | 49.9 | 6535 | 511 |
GPL 750a-5 | 750 | 251 | 5 | 46.6 | 62.2 | 8142 | 632 |
GPL 750a-6 | 750 | 252 | 6 | 55.7 | 74.3 | 9732 | 750 |
GPL 750a-7 | 750 | 253 | 7 | 68.6 | 91.5 | 11880 | 956 |
GPL 750a-8 | 750 | 254 | 8 | 78.6 | 104.8 | 13586 | 1093 |
GPL 750b-6 | 750 | 283 | 6 | 57.46 | 76.6 | 11375 | 788 |
GPL 750b-7 | 750 | 284 | 7 | 67 | 89.3 | 13263 | 912 |
GPL 750b-8 | 750 | 285 | 8 | 76.6 | 102 | 15170 | 1044 |
GPL 804-6 | 804 | 295 | 6 | 60.4 | 75.1 | 12059 | 803 |
GPL 804-7 | 804 | 296 | 7 | 70.4 | 87.5 | 14030 | 934 |
GPL 804-8 | 804 | 297 | 8 | 80.3 | 99.8 | 15995 | 1063 |
GPL 813-4 | 813 | 293 | 4 | 39 | 48 | 7897 | 537 |
GPL 813-5 | 813 | 294 | 5 | 48.7 | 59.9 | 9858 | 669 |
GPL 813-6 | 813 | 295 | 6 | 58.3 | 71.8 | 11813 | 801 |
GPL 840-6 | 840 | 250 | 6 | 57.46 | 68.4 | 7832 | 617 |
GPL 840-7 | 840 | 251 | 7 | 67 | 79.76 | 9128 | 718 |
GPL 840-8 | 840 | 252 | 8 | 76.61 | 91.2 | 10474 | 817 |
GPL 900-5 | 900 | 310 | 5 | 55.8 | 62 | 12276 | 785 |
GPL 900-6 | 900 | 310 | 6 | 66.6 | 74 | 13684 | 891 |
GPL 900-7a | 900 | 310 | 7 | 77.4 | 86 | 16013 | 1042 |
GPL 900-7b | 900 | 350 | 7 | 81 | 91 | 20805 | 1205 |
GPL 900-8a | 900 | 310 | 8 | 88.5 | 98.3 | 18306 | 1184 |
GPL 900-8b | 900 | 350 | 8 | 93.6 | 104 | 23715 | 1365 |
GPL 900-8.8 | 900 | 230 | 8.8 | 86.4 | 96 | 10500 | 902 |
GPL 900-9 | 900 | 350 | 9 | 104.4 | 116 | 36635 | 1525 |
GPL 900-10.3 | 900 | 300 | 10.3 | 113 | 126 | 24400 | 1610 |
GPL 900-12.5 | 900 | 368 | 12.5 | 147 | 163 | 45000 | 2450 |
GPL 900-14 | 900 | 370 | 14 | 167 | 186 | 51100 | 2760 |
GPL 921-4 | 921 | 252 | 4 | 39 | 42.3 | 5101 | 404 |
GPL 921-5 | 921 | 253 | 5 | 48.7 | 52.8 | 6363 | 504 |
GPL 921-6 | 921 | 254 | 6 | 58.3 | 63.3 | 7620 | 600 |
Note: This table is only part of our sizes.We have over 1000 different sizes. We can adjust our machine to produce in any width, Height and thickness. Please contact us if your size is not in above table.
Get More Help
If you have a foundation support project, please contact us. We offer the best sheet piling solutions.
Hanzi is one of China's largest manufacturers of steel sheet piles. It produces high-quality steel sheet piles in various types and sizes, widely used in port construction, offshore breakwaters, deep foundation pit support, integrated pipeline corridors, subways, bridges, tunnels, and other applications.
