Specifications

* Material: GB Q234B/Q345B, JIS A5523/SYW295, JIS A5528/SY295, SYW390, SY390, S355JR, SS400, S235JR, ASTM A36, etc.

* Shapes/Profiles: U, Z, L, S, Pan, Flat, Hat

* Types: U-type, Z-type, L-type, S-type, Pan-type, Flat-type, Hat-type

* Standards: AISI, ASTM, DIN, GB, JIS, EN

* Grades: SY295, SY390, Q345B, S355JR, SS400, S235JR, ASTM A36, etc.

* Length: 6m, 9m, 12m, or customized (up to 24m)

* Width: 400–750mm or customized

* Thickness: 3–25mm or customized

* Process: Hot-rolled and cold-rolled

Advantages of Steel Sheet Piles

* Long service life

* Comprehensive product range available

* Suitable for environments with high ground pressure and/or water pressure

* Reliable and durable

Applications

* Retaining walls

* Cofferdams

* Parking garages

* Environmental barrier walls

* Steel floodwalls

Need More Assistance

Please contact us for further information and a free quote.

Steel sheet piles are widely used in waterfront projects of all scales. They are rolled steel products consisting of a central web section flanked by integral interlocking mechanisms on each side. These interlocks feature a groove-and-tongue design, with one edge specially flattened to ensure a secure fit.

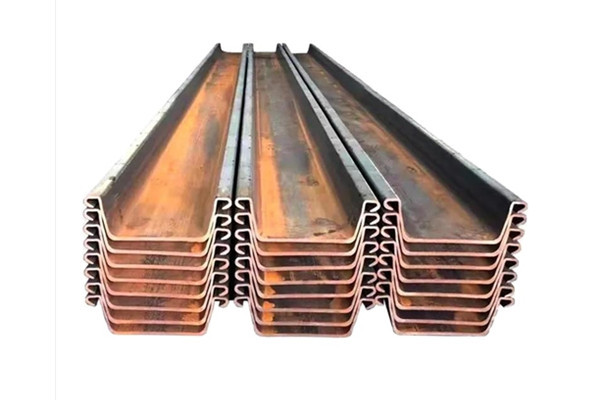

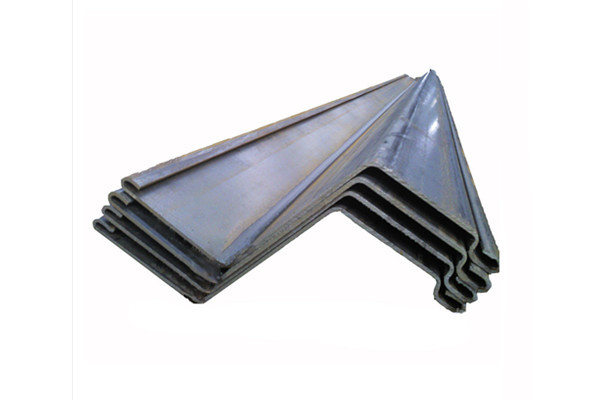

Hanzi offers a wide range of specifications and models for U-type and Z-type steel sheet piles, with lengths that can be custom-tailored to client requirements. This flexibility offers significant convenience during construction while helping to reduce costs.
