Specifications

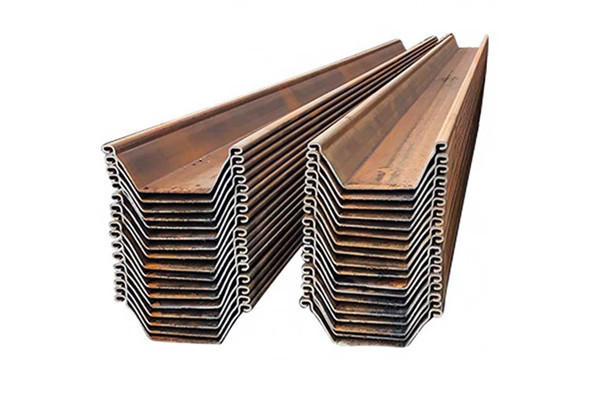

Hot rolled U-shaped steel sheet pile | ||||||||||||||||
Model | valid | valid | web | Single Pile | Pile surface per meter | HOESCH specifications | ||||||||||
Section | theory | moment of inertia | Section | moment of inertia | Section | Section | theory | moment of inertia | Section | moment of inertia section | ||||||
mm | mm | cm² | kg/m | cm² | cm | cm² | cm | cm² | kg/m | cm² | cm³ | cm² | cm³ | |||
PU400′100 | 400 | 100 | 10.5 | 61.18 | 48 | 1240 | 152 | 12200 | 562 | 153 | 120.1 | 8740 | 874 | 91676 | 2199 | LARSSEN408 |
PU400*125 | 400 | 125 | 13 | 76.32 | 60 | 2220 | 223 | 15133 | 691 | 191 | 149.9 | 16800 | 1340 | 114198 | 2725 | LARSSEN413 |
PU400′170 | 400 | 170 | 15.5 | 96.99 | 76.1 | 4670 | 362 | 18792 | 862 | 2425 | 190.4 | 38600 | 2270 | 143939 | 343 | LARSSEN422 |
PU600°180 | 600 | 180 | 13.4 | 103.9 | 81.6 | 5220 | 376 | 41070 | 1367 | 173.2 | 136 | 32400 | 1800 | 224222 | 3633 | LARSSEN618C |
PU600204.5 | 600 | 204.5 | 9.4 | 88.1 | 69.2 | 6200 | 426 | 38590 | 1216 | 146.9 | 1153 | 32858 | 1605 | 196510 | 3183 | LARSSEN616 |
PU600205 | 600 | 205 | 10 | 91.8 | 72.1 | 6434 | 438 | 39758 | 1253 | 153 | 120.1 | 34645 | 1690 | 203967 | 3304 | LARSSEN617 |
PU502055 | 600 | 205.5 | 10.9 | 974 | 76.4 | 6788 | 455 | 41541 | 1309 | 162.3 | 1274 | 37348 | 1817 | 179398 | 3488 | LARSSEN618 |
PU650020551 | 600 | 205.5 | 13 | 104.7 | 82.2 | 6933 | 450 | 41877 | 1320 | 174.5 | 137 | 42480 | 2067 | 272248 | 4411 | LARSSEN621T |
PU600′206 | 600 | 206 | 14 | 110.7 | 86.9 | 7267 | 466 | 43678 | 1377 | 184.5 | 144.8 | 45440 | 2205 | 238342 | 3861 | LARSSEN622T |
PU600′215 | 600 | 215 | 14 | 114 | 89.5 | 8235 | 510 | 46724 | 1464 | 190 | 1492 | 50376 | 2343 | 249632 | 4031 | LARSSEN523 |
PU600218 | 600 | 218 | 14.4 | 19.8 | 94 | 8940 | 542 | 46941 | 1470 | 199.8 | 156.7 | 54771 | 2512 | 252400 | 4076 | LARSSEN625 |
PU600~218.5 | 600 | 218.5 | 15.4 | 126 | 98.9 | 9350 | 562 | 47480 | 1487 | 209.9 | 164.8 | 58118 | 2660 | 259308 | 4187 | LARSSEN526 |
PU600210 | 600 | 210 | 18 | 135.5 | 1062 | 8630 | 539 | 50776 | 1600 | 225.5 | 177 | 56700 | 2700 | 287943 | 4665 | LARSSEN627C |
PU600*225.5 | 600 | 225.5 | 18 | 139 | 109.1 | 10452 | 603 | 53141 | 1674 | 231.7 | 181.9 | 69300 | 3073 | 297053 | 4811 | LARSSEN631 |
PU600'226 | 600 | 226 | 19 | 145.1 | 114 | 10873 | 624 | 55085 | 1735 | 241.7 | 190 | 72810 | 3222 | 309483 | 5012 | LARSSEN632 |
PU600*26.5 | 600 | 226.5 | 19.8 | 150 | 117.7 | 11606 | 668 | 56598 | 1783 | 250 | 196.2 | 75618 | 3340 | 319290 | 5170 | LARSSEN633 |
PU600′225 | 600 | 225 | 22.3 | 171.8 | 134.9 | 11830 | 666 | 64310 | 2056 | 286.3 | 224.8 | 87238 | 3877 | 364925 | 5893 | LARSSEN639 |
PU750*225a | 750 | 223.5 | 13 | 130.1 | 102.1 | 9830 | 579 | 78841 | 2007 | 173 | 136.1 | 50700 | 2270 | 348902 | 4544 | LARSSEN723 |
PU750225 | 750 | 225 | 14.6 | 140.6 | 110.4 | 10445 | 602 | 83297 | 2121 | 187.5 | 147.2 | 56301 | 2502 | 374787 | 4881 | LARSSEN725 |
Key Features and Advantages
1. Interlocking Watertight Joints: The continuous wall design restricts groundwater inflow, making this series ideal for excavation and marine operations.
2. Heavy-Duty Steel Construction: Suitable for both temporary and permanent projects, ranging from cofferdams to foundation walls.
3. Seven Sizes Available: Section moduli range from 742 to 3200 cm³/m, allowing you to select the appropriate profile based on your load requirements.
4. Wide Range of Applications: Suitable for retaining walls, cofferdams, canal linings, foundations, and marine structures such as harbor walls and quays.
5. Compatible Equipment Available: Hanzi provides pile driving hammers and pipe lifters to support on-site installation and handling.
6. Customized Quotes: Your requirements and pricing will be individually assessed by our foundation engineering team.
FAQ
Q: What is the cost of a sheet piling project?
A: The price of Larssen sheet piles depends on your specific project. Hanzi can provide a customized quote based on your requirements.
Q: What are the uses of sheet piles?
A: Larssen sheet piles can be used for temporary and permanent cofferdams, retaining walls, foundation construction, canal linings, and marine engineering projects such as harbor embankments and quay structures. They can also be used to construct larger or more complex structures, such as culverts, underpasses, and bridge abutments.
Q: How deep do the sheet piles need to be driven?
A: The appropriate penetration depth depends on pile length, foundation loads, and site conditions. Hanzi’s team evaluates these factors for each project and can help you determine the suitable pile length and penetration depth based on geological conditions.
