PZ steel sheet piles are typically best installed using the panel driving technique to ensure good verticality and alignment, minimizing the risk of pile driving difficulties or pile loss. This technique also provides better control over nominal wall length.
Specifications
Section | Dimensions | sectional area | Mass | Moment of inertia | Modulus of Section | ||||
Width | Height | Thickness | Per pile | Wall | |||||

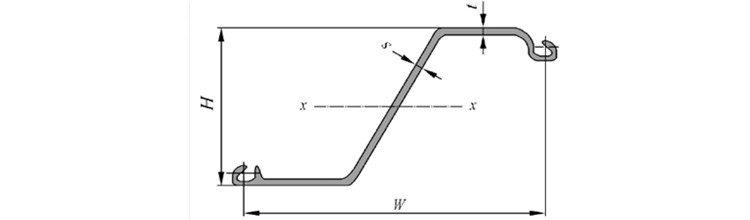

W | H | t | s | ||||||
mm | mm | mm | cm2/m | kg/m | kg/m2 | cm4/m | cm3/m | ||
PZ12-700 | 700 | 312.5 | 8.6 | 8.5 | 86.1 | 67.6 | 96.6 | 18833 | 1205 |
PZ12-770 | 770 | 343.5 | 8.6 | 8.5 | 92.72 | 72.8 | 94.5 | 21496 | 1252 |
PZ13-700 | 700 | 313.5 | 9.6 | 9.5 | 94.2 | 73.9 | 105.6 | 20494 | 1307 |
PZ13-770 | 770 | 344 | 9.1 | 9.0 | 97.1 | 76.2 | 99 | 22433 | 1304 |
PZ14-700 | 700 | 314.5 | 10.6 | 10.5 | 102.3 | 80.3 | 114.7 | 22156 | 1409 |
PZ14-770 | 770 | 344.5 | 9.6 | 9.5 | 101.45 | 79.6 | 103.4 | 23370 | 1357 |
PZ17-700 | 700 | 419.5 | 8.5 | 8.5 | 93.3 | 73.2 | 104.6 | 36304 | 1731 |
PZ18-700 | 700 | 420 | 9.0 | 9.0 | 97.7 | 76.7 | 109.5 | 37894 | 1804 |
PZ19-700 | 700 | 420.5 | 9.5 | 9.5 | 102.1 | 80.1 | 114.5 | 39485 | 1878 |
PZ20-700 | 700 | 421 | 10.0 | 10.0 | 106.5 | 83.6 | 119.4 | 41076 | 1951 |
PZ24A-700 | 700 | 439.0 | 11.0 | 11.0 | 121.2 | 95.1 | 135.9 | 53379 | 2432 |
PZ24-700 | 700 | 459.2 | 11.3 | 11.2 | 122.06 | 95.8 | 136.9 | 55949 | 2437 |
PZ26A-700 | 700 | 440.0 | 12.0 | 12.0 | 130.6 | 102.5 | 146.5 | 57329 | 2606 |
PZ26-700 | 700 | 460.2 | 12.3 | 12.2 | 131.18 | 103 | 147.1 | 59843 | 2601 |
PZ28A-700 | 700 | 441.0 | 13.0 | 13.0 | 140.0 | 109.9 | 157.0 | 61279 | 2779 |
PZ28-700 | 700 | 461.2 | 13.3 | 13.2 | 140.3 | 110.1 | 157.3 | 63740 | 2764 |
PZ30-750 | 750 | 510.2 | 13.1 | 11.0 | 139.04 | 109.1 | 155.9 | 77038 | 3020 |
PZ32-750 | 750 | 511.2 | 14.1 | 12.0 | 148.9 | 116.9 | 167 | 81993 | 3208 |
PZ34-750 | 750 | 512.2 | 15.1 | 13.0 | 158.77 | 124.6 | 178 | 86952 | 3395 |
PZ36A-700 | 700 | 499.0 | 17.0 | 11.0 | 150.5 | 118.1 | 168.8 | 89826 | 3600 |
PZ36-700 | 700 | 499.2 | 15.1 | 11.2 | 151.27 | 118.7 | 169.6 | 89753 | 3596 |
PZ38A-700 | 700 | 500.0 | 18.0 | 12.0 | 160.4 | 125.9 | 179.9 | 95004 | 3800 |
PZ38-700 | 700 | 500.2 | 16.1 | 12.2 | 161.16 | 126.5 | 180.7 | 94984 | 3798 |
PZ40A-700 | 700 | 501.0 | 19.0 | 13.0 | 170.3 | 133.7 | 191.0 | 100184 | 3999 |
PZ40-700 | 700 | 501.2 | 17.1 | 13.2 | 171.06 | 134.3 | 191.8 | 100219 | 3999 |
PZ42-700 | 700 | 499.2 | 18.1 | 14.0 | 182.12 | 143 | 204.2 | 105543 | 4228 |
PZ44-700 | 700 | 500.2 | 19.1 | 15.0 | 192.02 | 150.7 | 215.3 | 110942 | 4436 |
PZ46-700 | 700 | 501.2 | 20.1 | 16.0 | 201.93 | 158.5 | 226.5 | 116159 | 4635 |
PZ48-700 | 700 | 503.2 | 22.1 | 15.0 | 202.99 | 159.3 | 227.6 | 120467 | 4788 |
PZ50-700 | 700 | 504.2 | 23.1 | 16.0 | 212.41 | 166.7 | 238.2 | 125358 | 4973 |
PZ52-700 | 700 | 505.2 | 24.1 | 17.0 | 222.07 | 174.3 | 249 | 130403 | 5162 |
