Specifications
Model: S30 rail
Standard: DIN 5901
Weight: 30.03 kg/m
Material: Q235B (low-carbon steel) or 55Q (medium-carbon steel)
Length: 6–12 m, 12.5–25 m, or customized lengths
Model | DIMENSION | Weight | Material | Length | |||
A(mm) | B(mm) | C(mm) | t(mm) | (KG/M) | (m/PC) | ||
S30 | 60.3 | 108 | 108 | 12.3 | 30.03 | RO700 | 6-12 |

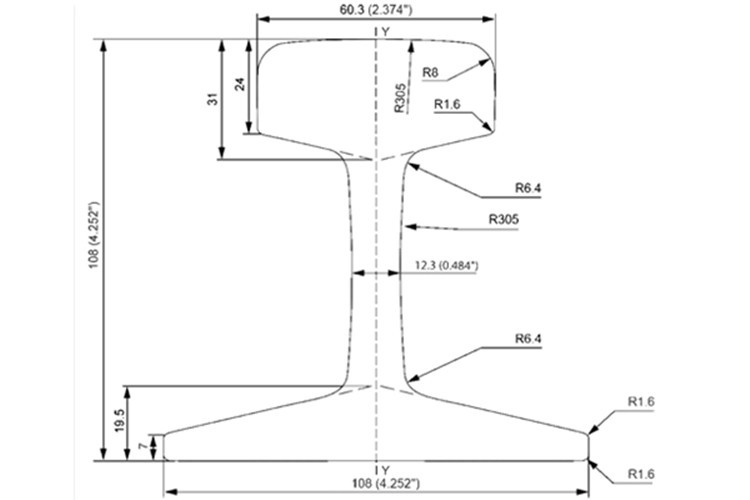

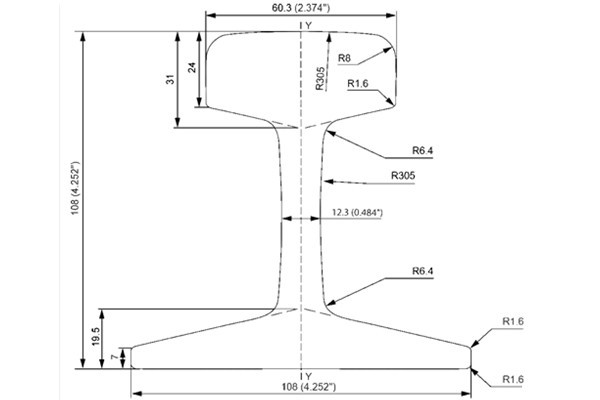

Drawings
Contact Us
Hanzi is China's largest rail manufacturer. If you are interested in our rails or have any questions, please contact us for more information and a quote.
The S30 rail system is designed for heavy-duty applications requiring high load-bearing capacity and long-term durability. Our rails and accessories comply with DIN 5901 and EN 13674-1 standards and are optimized for high-stress environments such as manufacturing, mining, and logistics.
Hanzi offers a wide range of rails—including light rails, heavy rails, and crane rails (such as the S30)—available in various standards and specifications.
