Specifications
Model: CR73 Rail
Standard: JIS E1103-93 / JIS E1101-93
Weight: 73.30 kg/m
Material: U71Mn
Length: 6–12 m, 12.5–25 m, or customized lengths upon request
Model | DIMENSION | Weight | Material | Length | |||
A(mm) | B(mm) | C(mm) | t(mm) | (KG/M) | (m/PC) | ||
CR 73 | 100 | 135 | 140 | 32 | 73.3 | U71Mn | 10-12 |

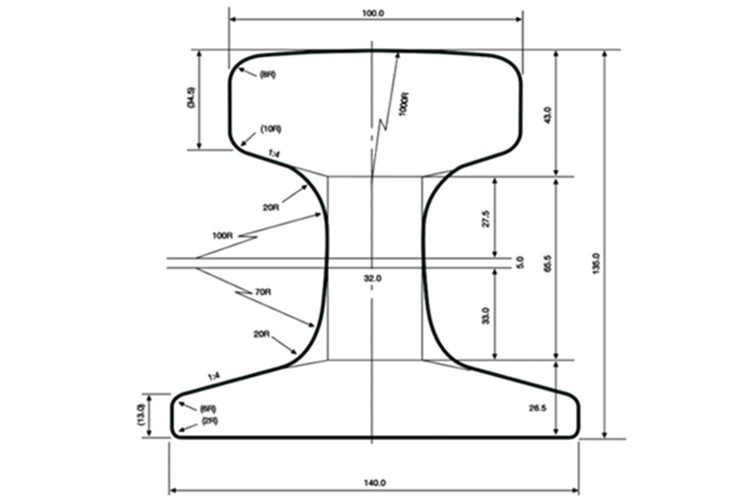

Drawing
Contact Us
Hanzi is China's largest rail manufacturer. If you are interested in our rails or have any questions, please contact us for further information and a quote.
The CR73 rail is a high-performance rail specifically designed for heavy-duty crane systems. It is widely used in heavy-load environments such as ports, mines, railway freight yards, and metallurgical plants. Manufactured from U71Mn alloy steel in compliance with Japanese and South Korean standards (JIS E1101-93), it offers a combination of high strength and wear resistance, capable of withstanding the rigorous demands of frequent lifting operations.
Hanzi offers a wide range of rails—including light rails, heavy rails, and crane rails (such as the CR73)—available in various standards and specifications.
