Specifications
Model: 54E4
Standard: BS11:1985
Weight: 54.31 kg/m (119.73 lb/yd)
Material: R260/R350HT
Length: 6–12 meters, 12.5–25 meters, or custom lengths upon request
Size | Rail height(mm) | Bottom Width(mm) | Head Width(mm) | Web Thickness(mm) | Weight(kg/m) |
A | B | C | t | ||
54E4 | 154 | 125 | 67 | 16 | 54.31 |

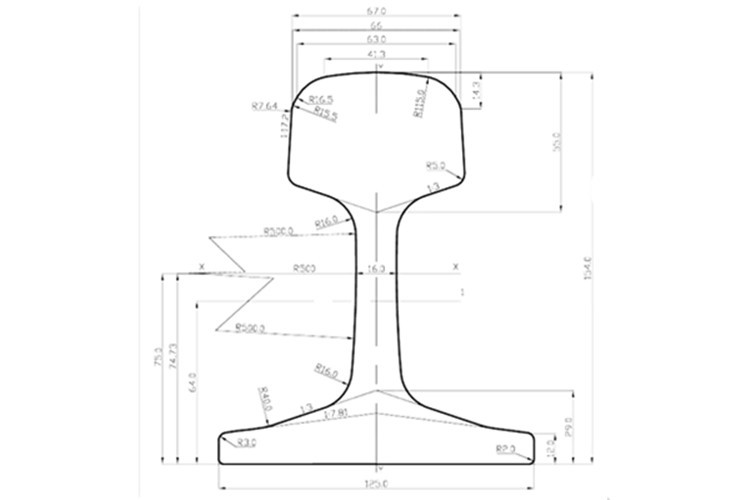

Drawing
Contact Us
Hanzi is China's largest rail manufacturer. If you are interested in our rails or have any questions, please contact us for more information and a quote.
The 54E4 rail is a high-performance, heavy-duty rail designed to meet the rigorous demands of ultra-heavy-haul freight networks, urban rail transit systems, and heavy-duty industrial applications. Compliant with EN 13674-4 (dimensions) and EN 13674-1 (mechanical properties) standards, this rail achieves a unique balance of strength, durability, and dimensional precision.
Hanzi offers a wide range of rails—including light rails, heavy rails (such as the 54E4), and crane rails—available in various standards and specifications.
