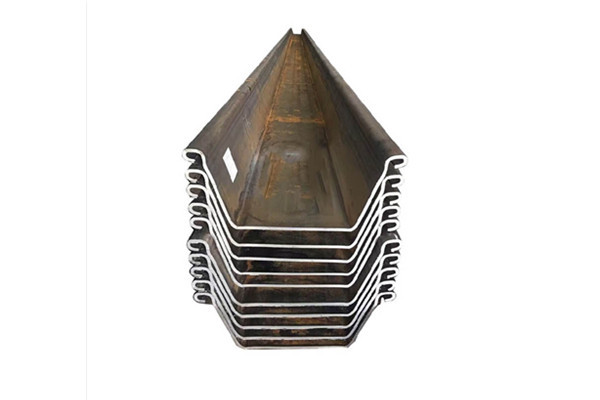

Specifications
Dimensions: 400×100 – 600×210 mm
Wall Thickness: 10.5–27.6 mm
Standards: JIS A5523, JIS A5528
Materials: SY295, SY390, S355
Coating: Bare, black painted (varnish coating), or galvanized
section | Width | Height | Thickness | Cross Sectional Area | Weight | Elastic Section Modulus | Moment of Inertia | Coating Area (both sides per pile) | ||
(w) | (h) | Flange (tf) | Web (tw) | Per Pile | Per Wall | |||||
mm | mm | mm | mm | cm2/m | kg/m | kg/m2 | cm3/m | cm4/m | m2/m | |
Type II | 400 | 200 | 10.5 | - | 152.9 | 48 | 120 | 874 | 8,740 | 1.33 |
Type III | 400 | 250 | 13 | - | 191.1 | 60 | 150 | 1,340 | 16,800 | 1.44 |
Type IIIA | 400 | 300 | 13.1 | - | 186 | 58.4 | 146 | 1,520 | 22,800 | 1.44 |
Type IV | 400 | 340 | 15.5 | - | 242 | 76.1 | 190 | 2,270 | 38,600 | 1.61 |
Type VL | 500 | 400 | 24.3 | - | 267.5 | 105 | 210 | 3,150 | 63,000 | 1.75 |
Type IIw | 600 | 260 | 10.3 | - | 131.2 | 61.8 | 103 | 1,000 | 13,000 | 1.77 |
Type IIIw | 600 | 360 | 13.4 | - | 173.2 | 81.6 | 136 | 1,800 | 32,400 | 1.9 |
Type IVw | 600 | 420 | 18 | - | 225.5 | 106 | 177 | 2,700 | 56,700 | 1.99 |
Type VIL | 500 | 450 | 27.6 | - | 305.7 | 120 | 240 | 3,820 | 86,000 | 1.82 |
* Section Modulus Range: 1100–5000 cm³/m
* Width Range (Single Unit): 580–800 mm
* Thickness Range: 5–16 mm
* Maximum Length: 27.0 m
* Standard Stock Lengths: 6 m, 9 m, 12 m, 15 m
SPECIFICATIONS FOR SHEET PILE | |
1. Size | 1) 400*100 - 600*210MM |
2)Wall Thickness:10.5-27.6MM | |
3) U type sheet pile | |
2. Standard: | EN10248,EN10249,JIS5528,JIS5523,ASTM |
3.Material | S275,S355,S390,S430,SY295,SY390,ASTM A690 |
4. Location of our factory | Tianjin,China |
5. Usage: | 1)earth-retaining wall |
2)structure construction | |
3)fence | |
6. Coating: | 1) Bared 2) Black Painted (varnish coating) 3) galvanized |
7. Technique: | hot rolled |
8. Type: | U type sheet pile |
9. Section Shape: | U |
10. Inspection: | Client inspection or inspection by 3rd party. |
11. Delivery: | Container, Bulk Vessel. |
12. About Our Quality: | 1) No damage, no bent2) Free for oiled&marking3) All goods can be checked by third party inspection before shipment |

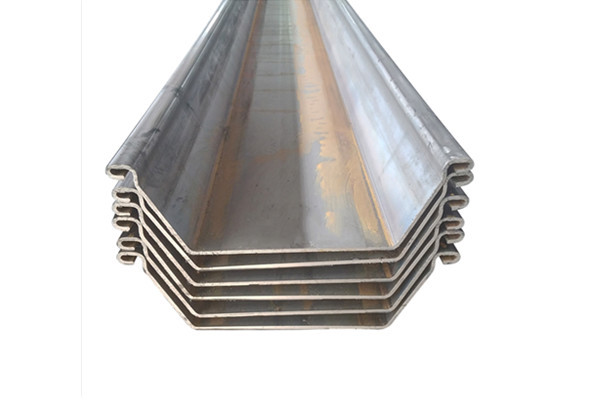

Advantages of U-Shaped Steel Sheet Piles:
1. Wide variety of specifications and models available.
2. The combination of significant profile depth and substantial flange thickness ensures excellent static performance.
3. Designed and manufactured according to European standards; the symmetrical structure facilitates reuse, offering performance equivalent to standard hot-rolled piles during repeated use.
4. Customizable lengths provide great convenience for construction and help reduce costs.
5. Ease of production allows for customization in advance, particularly when used in conjunction with composite piles.
6. Short design and production cycles; pile performance characteristics can be tailored to specific client requirements.
Applications of U-type Steel Sheet Piles:
Steel sheet piles are substantial in size and versatile in use. In permanent structures, they are employed for wharves, unloading yards, embankment slope protection, walls, retaining walls, breakwaters, training dikes, dry docks, and sluice gates. In temporary structures, they serve purposes such as enclosing excavation sites, temporary coastal expansions, water cut-offs, bridge cofferdams, and water/sand retention during trenching for large-scale pipeline installations. They are also utilized for flood control, landslide prevention, and sand retention.
