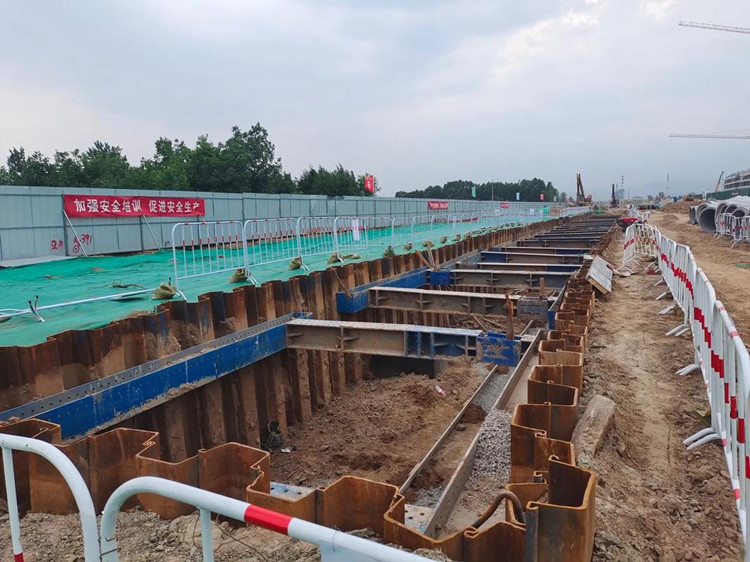

Vinyl (PVC) sheet piles have become a popular, corrosion-resistant alternative to traditional steel sheet piles in the construction of marine structures, flood walls, and soil retention systems. However, because vinyl lacks the inherent rigidity of steel, successful installation requires a specialized tool: the mandrel.

1. Why the Mandrel Is Crucial

1) Preventing Damage

If subjected directly to the high-frequency impacts of a vibratory hammer, vinyl sheet piles are highly susceptible to cracking, deformation, or the appearance of "chatter marks" on the surface.

2) Enhancing Penetration in Complex Soil Conditions

In dense, rocky, or highly cohesive soils, vinyl sheet piles often struggle to reach the design depth on their own.

3) Ensuring Precise Alignment and Verticality

Maintaining a straight wall is essential for the proper functioning of the sheet pile interlocking system.

4) The Mandrel Handles the "Heavy Lifting": It receives the vibrations generated by the hammer and transfers the energy directly into the soil, preventing energy loss caused by the deformation of the softer vinyl material.

2. Common Types of Installation Mandrels

Manufacturers typically offer mandrels in various specifications to suit different soil conditions and project scales:

1) Sleeve Mandrel: A steel sleeve that fits directly over the exterior of the vinyl sheet pile (or a pair of Z-profile piles) and is secured in place with temporary clamps.

2) Side Mandrel: A steel guiding device that runs parallel to the vinyl sheet pile.

3) Cutting Mandrel: Designed specifically to pre-cut and loosen cohesive soils.

3. Installation Best Practices

To ensure a safe and smooth installation, contractors should follow these industry best practices:

1) Flexible Connection to the Pile Hammer: The mandrel must be secured to the vibratory hammer using heavy-duty flexible chains or a specialized clamping mechanism.

2) Proper sheet pile insertion: The vinyl sheet pile must be fully inserted into the mandrel and seated firmly against the mandrel head or the length-adjustment slider.

3) Preventing "uplift" during extraction: When the steel mandrel is withdrawn, soil friction can sometimes cause the vinyl sheet pile to be pulled up along with it.

4) Use of a driving guide: To ensure optimal verticality (especially when the sheet pile extends more than 1 meter above ground), a combination of the mandrel and an external guide (made of channel steel or timber) should be used to maintain alignment.

Conclusion

The mandrel is more than just an accessory; it is a key technology for achieving deep, reliable vinyl sheet pile installations. By protecting the material, ensuring alignment, and overcoming challenging soil conditions, the mandrel effectively combines the lightweight, corrosion-resistant advantages of vinyl with the high-strength requirements of modern geotechnical construction.
