What are MSZ Interlocking Steel Sheet Piles?

Nov 20, 2015
115 Views

If interlocking cold-formed steel sheet piles (MSZ15-312 or MSZ15-340) are not large enough to be marked with the word "hole" or "cover" to warn of the hazard using MSZ15-350 waterproof sealant, they should be marked with high-visibility paint for identification. If the cover needs to be removed, a supervisor should be posted at the opening until the cover is replaced. The supervisor should warn anyone entering the hazard area and prevent them from being exposed to the MSZ15-375 hazard, but may not perform other duties.

Medium lightweight retaining wall cross-sectional area. Wire ropes used for scaffolding suspension should be capable of supporting six times the expected MSZ15-350 load. Braced or single-slope scaffolding is prohibited. All retaining wall joints should be welded to prevent leakage. Silo fill should be placed in loose layers up to 8 inches thick and compacted to 95% of the standard Procter & Gamble density of MSZ15-340. Narrow-gauge scaffolding (30 inches wide) should not be constructed with a working platform exceeding 4 feet (approximately 1.2 meters) unless equipped with outriggers. Saturation compaction is not permitted.

Mega Zee 15 sheet piles should be used in MSZ15-375 and MSZ15-406 thicknesses and should have a maximum loose layer density of 90% of the standard Procter & Gamble density. Scaffolding should be installed with supports of appropriate length to ensure verticality and stability. All listed MSZ15-312 lightweight sheet piles are manufactured in the USA. All lightweight sheet piles can be cut to length to suit your needs.

Specifications

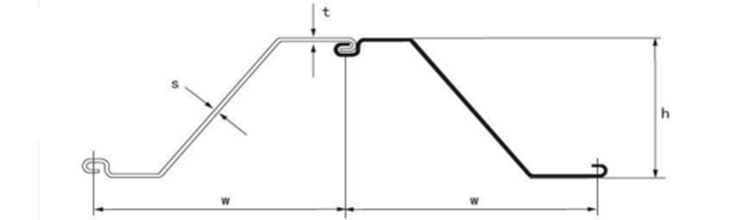

Section	Dimensions			Mass		Moment of inertia	Modulus of section
	Width	Height	Thickness	Pile	Wall
	w	h	t/s
	In	In	In	Lbs/ft	Lbs/ft2	In4/ft	In3/ft
MSZ10-312	38.82	2.19	0.312	49.72	15.37	1.3	0.67
MSZ10-340	38.82	2.19	0.340	54.10	16.72	1.41	0.72
MSZ10-350	38.82	2.19	0.350	55.69	17.22	1.45	0.74
MSZ10-375	38.82	2.19	0.373	59.67	18.45	1.56	0.79
MSZ10-406	38.82	2.19	0.406	64.60	19.97	1.73	0.86
MSZ11-312	38.55	3.53	0.312	49.72	15.48	6.83	3.76
MSZ11-340	38.55	3.53	0.340	54.1	16.84	7.43	4.06
MSZ11-350	38.55	3.53	0.350	55.69	17.34	7.65	4.17
MSZ11-375	38.55	3.53	0.375	59.67	18.58	8.21	4.44
MSZ11-406	38.55	3.53	0.406	64.6	20.11	8.92	4.79
MSZ12-312	37.72	6.64	0.312	49.72	8.76	29.29	8.76
MSZ12-340	37.72	6.64	0.340	54.1	9.50	31.87	9.50
MSZ12-350	37.72	6.64	0.350	55.69	9.77	32.84	9.77
MSZ12-375	37.72	6.64	0.375	59.67	10.43	35.17	10.43
MSZ12-406	37.72	6.64	0.406	64.6	11.27	38.16	11.27
MSZ13-312	36.38	9.58	0.312	49.72	14.13	67.86	14.13
MSZ13-340	36.38	9.58	0.340	54.10	15.32	73.79	15.32
MSZ13-350	36.38	9.58	0.350	55.69	15.74	75.93	15.74
MSZ13-375	36.38	9.58	0.375	50.67	16.81	81.34	16.81
MSZ13-406	36.38	9.58	0.406	64.6	18.18	88.27	18.18
MSZ14-312	34.56	12.24	0.312	12.27	19.62	120.97	19.62
MSZ14-340	34.56	12.24	0.340	18.89	21.29	131.28	21.29
MSZ14-350	34.56	12.24	0.350	19.34	21.91	135.50	21.91
MSZ14-375	34.56	12.24	0.375	20.72	23.38	144.93	23.38
MSZ14-406	34.56	12.24	0.406	22.43	25.29	157.25	25.29
MSZ15-312	32.79	14.11	0.312	49.72	18.20	172.66	24.24
MSZ15-340	32.79	14.11	0.340	54.10	19.80	187.52	26.27
MSZ15-350	32.79	14.11	0.350	55.69	20.38	193.26	27.06
MSZ15-375	32.79	14.11	0.375	59.67	21.84	207.03	28.91
MSZ15-406	32.79	14.11	0.406	64.60	23.64	224.46	31.27
MSZ16-312	31.05	15.54	0.312	49.72	19.22	223.36	28.45
MSZ16-340	31.05	15.54	0.340	54.10	20.91	242.98	30.88
MSZ16-350	31.05	15.54	0.350	55.69	21.53	249.85	31.74
MSZ16-375	31.05	15.54	0.375	59.67	23.06	267.87	33.95
MSZ16-406	31.05	15.54	0.406	64.60	24.97	290.74	36.75
MSZ17-312	29.71	16.43	0.312	49.72	20.09	262.34	31.60
MSZ17-340	29.71	16.43	0.340	54.1	21.86	285.10	34.27
MSZ17-350	29.71	16.43	0.350	55.69	22.50	293.36	35.25
MSZ17-575	29.71	16.43	0.375	59.67	24.11	314.57	37.71
MSZ17-406	29.71	16.43	0.406	64.60	26.10	241.03	40.80
MSZ18-312	28.38	17.2	0.312	49.73	20.58	296.05	34.49
MSZ18-340	28.38	17.2	0.24	54.1	22.39	322.09	37.45
MSZ18-350	28.38	17.2	0.350	55.69	23.04	330.95	38.46
MSZ18-375	28.38	17.2	0.375	59.67	24.69	354.49	41.12
MSZ18-406	28.38	17.2	0.406	64.6	26.74	384.83	44.53
MSZ19-340	26.88	17.9	0.340	54.1	23.61	368.18	41.17
MSZ19-350	26.88	17.9	0.350	55.69	24.30	867.04	42.24
MSZ19-375	26.88	17.9	0.375	59.67	26.04	929.74	45.25
MSZ19-406	26.88	17.9	0.406	64.60	28.19	1008.15	48.97
