What are American-made MSZ Sheet Piles?

Sep 20, 2017
117 Views

Both the MSZ11-312 and MSZ11-340 shoreline sections have curved corners. Be aware of the physical difference between active pressure and the loading wedges that resist passive pressure. When using a site-fabricated ladder, ensure that the horizontal distance from the top support of the MSZ11-406 ladder to the foot of the ladder is approximately 1/4 of the ladder's working length. Ladders should only be used as specified, fully opened, and latched. Log walls are typically constructed with posts placed 3 to 8 feet on center. For prefabricated modular walls with MSZ11-375 units, if the wall fill is in contact with the foundation soil, the coefficient is equal to Tan ø at the wall base, where ø is the friction angle of the MSZ11-350 wall fill or the foundation soil, whichever is less.

Mega Zee 11 sheet piles MSZ11-350 and MSZ11-375 are not suitable for use in MSZ11-406 channels. Active earth pressure in the tensile pullout zone is typically limited to the upper third of the landslide mass. Stairs with four or more risers or heights exceeding 30 inches (whichever is less) should be equipped with: (a) MSZ11-340: at least one handrail; and (b) a stair handrail system along each unprotected side or edge. Lateral pressures in this area are typically 10 to 20 times greater than in the cliff crest area. For MSZ11-312 precast modular walls whose base consists of a continuous or nearly continuous concrete surface, this factor is equal to Tan 2/3 ø fn, where ø fn is the friction angle of the foundation soil.

Specifications

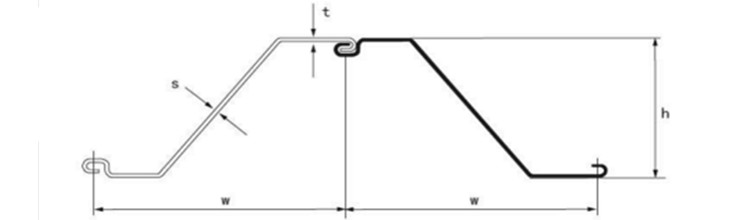

Section	Dimensions			Mass		Moment of inertia	Modulus of section
	Width	Height	Thickness	Pile	Wall	Moment of inertia	Modulus of section
	w	h	t/s
	In	In	In	Lbs/ft	Lbs/ft2	In4/ft	In3/ft
MSZ10-312	38.82	2.19	0.312	49.72	15.37	1.3	0.67
MSZ10-340	38.82	2.19	0.340	54.10	16.72	1.41	0.72
MSZ10-350	38.82	2.19	0.350	55.69	17.22	1.45	0.74
MSZ10-375	38.82	2.19	0.373	59.67	18.45	1.56	0.79
MSZ10-406	38.82	2.19	0.406	64.60	19.97	1.73	0.86
MSZ11-312	38.55	3.53	0.312	49.72	15.48	6.83	3.76
MSZ11-340	38.55	3.53	0.340	54.1	16.84	7.43	4.06
MSZ11-350	38.55	3.53	0.350	55.69	17.34	7.65	4.17
MSZ11-375	38.55	3.53	0.375	59.67	18.58	8.21	4.44
MSZ11-406	38.55	3.53	0.406	64.6	20.11	8.92	4.79
MSZ12-312	37.72	6.64	0.312	49.72	8.76	29.29	8.76
MSZ12-340	37.72	6.64	0.340	54.1	9.50	31.87	9.50
MSZ12-350	37.72	6.64	0.350	55.69	9.77	32.84	9.77
MSZ12-375	37.72	6.64	0.375	59.67	10.43	35.17	10.43
MSZ12-406	37.72	6.64	0.406	64.6	11.27	38.16	11.27
MSZ13-312	36.38	9.58	0.312	49.72	14.13	67.86	14.13
MSZ13-340	36.38	9.58	0.340	54.10	15.32	73.79	15.32
MSZ13-350	36.38	9.58	0.350	55.69	15.74	75.93	15.74
MSZ13-375	36.38	9.58	0.375	50.67	16.81	81.34	16.81
MSZ13-406	36.38	9.58	0.406	64.6	18.18	88.27	18.18
MSZ14-312	34.56	12.24	0.312	12.27	19.62	120.97	19.62
MSZ14-340	34.56	12.24	0.340	18.89	21.29	131.28	21.29
MSZ14-350	34.56	12.24	0.350	19.34	21.91	135.50	21.91
MSZ14-375	34.56	12.24	0.375	20.72	23.38	144.93	23.38
MSZ14-406	34.56	12.24	0.406	22.43	25.29	157.25	25.29
MSZ15-312	32.79	14.11	0.312	49.72	18.20	172.66	24.24
MSZ15-340	32.79	14.11	0.340	54.10	19.80	187.52	26.27
MSZ15-350	32.79	14.11	0.350	55.69	20.38	193.26	27.06
MSZ15-375	32.79	14.11	0.375	59.67	21.84	207.03	28.91
MSZ15-406	32.79	14.11	0.406	64.60	23.64	224.46	31.27
MSZ16-312	31.05	15.54	0.312	49.72	19.22	223.36	28.45
MSZ16-340	31.05	15.54	0.340	54.10	20.91	242.98	30.88
MSZ16-350	31.05	15.54	0.350	55.69	21.53	249.85	31.74
MSZ16-375	31.05	15.54	0.375	59.67	23.06	267.87	33.95
MSZ16-406	31.05	15.54	0.406	64.60	24.97	290.74	36.75
MSZ17-312	29.71	16.43	0.312	49.72	20.09	262.34	31.60
MSZ17-340	29.71	16.43	0.340	54.1	21.86	285.10	34.27
MSZ17-350	29.71	16.43	0.350	55.69	22.50	293.36	35.25
MSZ17-575	29.71	16.43	0.375	59.67	24.11	314.57	37.71
MSZ17-406	29.71	16.43	0.406	64.60	26.10	241.03	40.80
MSZ18-312	28.38	17.2	0.312	49.73	20.58	296.05	34.49
MSZ18-340	28.38	17.2	0.24	54.1	22.39	322.09	37.45
MSZ18-350	28.38	17.2	0.350	55.69	23.04	330.95	38.46
MSZ18-375	28.38	17.2	0.375	59.67	24.69	354.49	41.12
MSZ18-406	28.38	17.2	0.406	64.6	26.74	384.83	44.53
MSZ19-340	26.88	17.9	0.340	54.1	23.61	368.18	41.17
MSZ19-350	26.88	17.9	0.350	55.69	24.30	867.04	42.24
MSZ19-375	26.88	17.9	0.375	59.67	26.04	929.74	45.25
MSZ19-406	26.88	17.9	0.406	64.60	28.19	1008.15	48.97
