What are MSZ Series Steel Sheet Piles?

Jul 20, 2017
118 Views

Z-Type cold-formed steel sheet piles (MSZ18-312 and MSZ18-340) should be designed to ensure that only the horizontal and vertical forces of MSZ18-350 are transferred to the wall's decking members. Design: A critical factor in box design is the adequacy of the MSZ18-406 foundation. The foundation should be free of knots and extend 6 inches beyond the platform on both sides and ends, and 6 inches beyond the support.

Mega Zee 18 steel sheet piles (MSZ18-375) should be continuous along the entire length of the wall and have no expansion joints. Although the cost of the concrete slab is slightly higher than the steel purlins used in standard bin-wall, installation costs can be reduced. Horizontal forces applied by the support plate to the top of the wall's decking members should comply with Section 5.9.3.6.1. Wooden edging of at least MSZ18-375 or equivalent should be provided around the platform to prevent tools from rolling off. The top layer of soil reinforcement should be designed for a minimum wall tensile load equivalent to 1.9 kilopounds per foot of wall.

Observed ice reactions on the Contech Marine BinWall indicate that the structure's mass is capable of resisting the resultant force of MSZ18-340. This load should be considered a factored load with an FSpo equal to or greater than 1.0, and the soil MSZ18-312 reinforcement load should be less than or equal to 1.33Ta. The minimum length of the top layer of soil reinforcement should be 16 feet.

Specifications

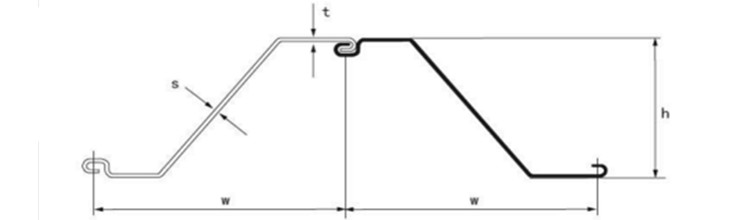

Section	Dimensions			Mass		Moment of inertia	Modulus of section
	Width	Height	Thickness	Pile	Wall	Moment of inertia	Modulus of section
	w	h	t/s
	In	In	In	Lbs/ft	Lbs/ft2	In4/ft	In3/ft
MSZ10-312	38.82	2.19	0.312	49.72	15.37	1.3	0.67
MSZ10-340	38.82	2.19	0.340	54.10	16.72	1.41	0.72
MSZ10-350	38.82	2.19	0.350	55.69	17.22	1.45	0.74
MSZ10-375	38.82	2.19	0.373	59.67	18.45	1.56	0.79
MSZ10-406	38.82	2.19	0.406	64.60	19.97	1.73	0.86
MSZ11-312	38.55	3.53	0.312	49.72	15.48	6.83	3.76
MSZ11-340	38.55	3.53	0.340	54.1	16.84	7.43	4.06
MSZ11-350	38.55	3.53	0.350	55.69	17.34	7.65	4.17
MSZ11-375	38.55	3.53	0.375	59.67	18.58	8.21	4.44
MSZ11-406	38.55	3.53	0.406	64.6	20.11	8.92	4.79
MSZ12-312	37.72	6.64	0.312	49.72	8.76	29.29	8.76
MSZ12-340	37.72	6.64	0.340	54.1	9.50	31.87	9.50
MSZ12-350	37.72	6.64	0.350	55.69	9.77	32.84	9.77
MSZ12-375	37.72	6.64	0.375	59.67	10.43	35.17	10.43
MSZ12-406	37.72	6.64	0.406	64.6	11.27	38.16	11.27
MSZ13-312	36.38	9.58	0.312	49.72	14.13	67.86	14.13
MSZ13-340	36.38	9.58	0.340	54.10	15.32	73.79	15.32
MSZ13-350	36.38	9.58	0.350	55.69	15.74	75.93	15.74
MSZ13-375	36.38	9.58	0.375	50.67	16.81	81.34	16.81
MSZ13-406	36.38	9.58	0.406	64.6	18.18	88.27	18.18
MSZ14-312	34.56	12.24	0.312	12.27	19.62	120.97	19.62
MSZ14-340	34.56	12.24	0.340	18.89	21.29	131.28	21.29
MSZ14-350	34.56	12.24	0.350	19.34	21.91	135.50	21.91
MSZ14-375	34.56	12.24	0.375	20.72	23.38	144.93	23.38
MSZ14-406	34.56	12.24	0.406	22.43	25.29	157.25	25.29
MSZ15-312	32.79	14.11	0.312	49.72	18.20	172.66	24.24
MSZ15-340	32.79	14.11	0.340	54.10	19.80	187.52	26.27
MSZ15-350	32.79	14.11	0.350	55.69	20.38	193.26	27.06
MSZ15-375	32.79	14.11	0.375	59.67	21.84	207.03	28.91
MSZ15-406	32.79	14.11	0.406	64.60	23.64	224.46	31.27
MSZ16-312	31.05	15.54	0.312	49.72	19.22	223.36	28.45
MSZ16-340	31.05	15.54	0.340	54.10	20.91	242.98	30.88
MSZ16-350	31.05	15.54	0.350	55.69	21.53	249.85	31.74
MSZ16-375	31.05	15.54	0.375	59.67	23.06	267.87	33.95
MSZ16-406	31.05	15.54	0.406	64.60	24.97	290.74	36.75
MSZ17-312	29.71	16.43	0.312	49.72	20.09	262.34	31.60
MSZ17-340	29.71	16.43	0.340	54.1	21.86	285.10	34.27
MSZ17-350	29.71	16.43	0.350	55.69	22.50	293.36	35.25
MSZ17-575	29.71	16.43	0.375	59.67	24.11	314.57	37.71
MSZ17-406	29.71	16.43	0.406	64.60	26.10	241.03	40.80
MSZ18-312	28.38	17.2	0.312	49.73	20.58	296.05	34.49
MSZ18-340	28.38	17.2	0.24	54.1	22.39	322.09	37.45
MSZ18-350	28.38	17.2	0.350	55.69	23.04	330.95	38.46
MSZ18-375	28.38	17.2	0.375	59.67	24.69	354.49	41.12
MSZ18-406	28.38	17.2	0.406	64.6	26.74	384.83	44.53
MSZ19-340	26.88	17.9	0.340	54.1	23.61	368.18	41.17
MSZ19-350	26.88	17.9	0.350	55.69	24.30	867.04	42.24
MSZ19-375	26.88	17.9	0.375	59.67	26.04	929.74	45.25
MSZ19-406	26.88	17.9	0.406	64.60	28.19	1008.15	48.97
