What are North American MSZ Steel Sheet Piles?

Nov 20, 2017
114 Views

North American steel sheet piles have a Z-shaped cross-section, such as MSZ12-312, MSZ12-340, and MSZ12-350. Metal steps and platforms used for access prior to completion should be installed with secure temporary fill of sufficient length and height to cover the entire area. Passive earth pressure is located in the lower two-thirds of the sliding mass, where the ground is in compression, as per MSZ12-406. Ramps and inclined walkways. Ramps and inclined walkways should be 18 inches or wider. Earth pressure at rest is located at the neutral axis of the sliding mass, a confined area where the ground experiences little expansion or contraction. The total driving force acting on the wall is typically composed of the design lateral pressure component acting on the pressure surface parallel to the base of the wall.

Mega Zee 12 steel sheet piles located four feet or more above the ground should be equipped with guardrails that comply with MSZ12-375 and MSZ12-406 standards. This area is undergoing expansion. Railings must not be inclined more than 24 degrees and must be reinforced or otherwise treated to prevent slipping and secured to prevent displacement. Definition: Floor opening – Any opening in a floor, roof, or platform with a minimum dimension of 12 inches or more that could cause a person to fall. The resisting moment is typically provided by the weight of the wall, the surcharge load acting on the top of the wall, and the vertical component of the design lateral pressure acting on the pressure surface.

Specifications

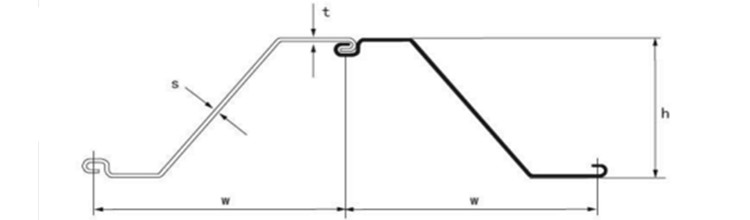

Section	Dimensions			Mass		Moment of inertia	Modulus of section
	Width	Height	Thickness	Pile	Wall	Moment of inertia	Modulus of section
	w	h	t/s
	In	In	In	Lbs/ft	Lbs/ft2	In4/ft	In3/ft
MSZ10-312	38.82	2.19	0.312	49.72	15.37	1.3	0.67
MSZ10-340	38.82	2.19	0.340	54.10	16.72	1.41	0.72
MSZ10-350	38.82	2.19	0.350	55.69	17.22	1.45	0.74
MSZ10-375	38.82	2.19	0.373	59.67	18.45	1.56	0.79
MSZ10-406	38.82	2.19	0.406	64.60	19.97	1.73	0.86
MSZ11-312	38.55	3.53	0.312	49.72	15.48	6.83	3.76
MSZ11-340	38.55	3.53	0.340	54.1	16.84	7.43	4.06
MSZ11-350	38.55	3.53	0.350	55.69	17.34	7.65	4.17
MSZ11-375	38.55	3.53	0.375	59.67	18.58	8.21	4.44
MSZ11-406	38.55	3.53	0.406	64.6	20.11	8.92	4.79
MSZ12-312	37.72	6.64	0.312	49.72	8.76	29.29	8.76
MSZ12-340	37.72	6.64	0.340	54.1	9.50	31.87	9.50
MSZ12-350	37.72	6.64	0.350	55.69	9.77	32.84	9.77
MSZ12-375	37.72	6.64	0.375	59.67	10.43	35.17	10.43
MSZ12-406	37.72	6.64	0.406	64.6	11.27	38.16	11.27
MSZ13-312	36.38	9.58	0.312	49.72	14.13	67.86	14.13
MSZ13-340	36.38	9.58	0.340	54.10	15.32	73.79	15.32
MSZ13-350	36.38	9.58	0.350	55.69	15.74	75.93	15.74
MSZ13-375	36.38	9.58	0.375	50.67	16.81	81.34	16.81
MSZ13-406	36.38	9.58	0.406	64.6	18.18	88.27	18.18
MSZ14-312	34.56	12.24	0.312	12.27	19.62	120.97	19.62
MSZ14-340	34.56	12.24	0.340	18.89	21.29	131.28	21.29
MSZ14-350	34.56	12.24	0.350	19.34	21.91	135.50	21.91
MSZ14-375	34.56	12.24	0.375	20.72	23.38	144.93	23.38
MSZ14-406	34.56	12.24	0.406	22.43	25.29	157.25	25.29
MSZ15-312	32.79	14.11	0.312	49.72	18.20	172.66	24.24
MSZ15-340	32.79	14.11	0.340	54.10	19.80	187.52	26.27
MSZ15-350	32.79	14.11	0.350	55.69	20.38	193.26	27.06
MSZ15-375	32.79	14.11	0.375	59.67	21.84	207.03	28.91
MSZ15-406	32.79	14.11	0.406	64.60	23.64	224.46	31.27
MSZ16-312	31.05	15.54	0.312	49.72	19.22	223.36	28.45
MSZ16-340	31.05	15.54	0.340	54.10	20.91	242.98	30.88
MSZ16-350	31.05	15.54	0.350	55.69	21.53	249.85	31.74
MSZ16-375	31.05	15.54	0.375	59.67	23.06	267.87	33.95
MSZ16-406	31.05	15.54	0.406	64.60	24.97	290.74	36.75
MSZ17-312	29.71	16.43	0.312	49.72	20.09	262.34	31.60
MSZ17-340	29.71	16.43	0.340	54.1	21.86	285.10	34.27
MSZ17-350	29.71	16.43	0.350	55.69	22.50	293.36	35.25
MSZ17-575	29.71	16.43	0.375	59.67	24.11	314.57	37.71
MSZ17-406	29.71	16.43	0.406	64.60	26.10	241.03	40.80
MSZ18-312	28.38	17.2	0.312	49.73	20.58	296.05	34.49
MSZ18-340	28.38	17.2	0.24	54.1	22.39	322.09	37.45
MSZ18-350	28.38	17.2	0.350	55.69	23.04	330.95	38.46
MSZ18-375	28.38	17.2	0.375	59.67	24.69	354.49	41.12
MSZ18-406	28.38	17.2	0.406	64.6	26.74	384.83	44.53
MSZ19-340	26.88	17.9	0.340	54.1	23.61	368.18	41.17
MSZ19-350	26.88	17.9	0.350	55.69	24.30	867.04	42.24
MSZ19-375	26.88	17.9	0.375	59.67	26.04	929.74	45.25
MSZ19-406	26.88	17.9	0.406	64.60	28.19	1008.15	48.97
