JSP2, JSP3, and JSP4 steel sheet piles all have a cross-sectional width of 400 mm. JSP2 and JSP3 steel sheet piles are wall-type designs and are primarily sold in Europe. JSP4 dimensions are more similar to profiles found in Japan, Korea, China, and Asia.
Specifications
Section | Dimensions | Mass | Moment | Modulus | ||||
Width | Height | Thickness | Per pile | Wall | ||||

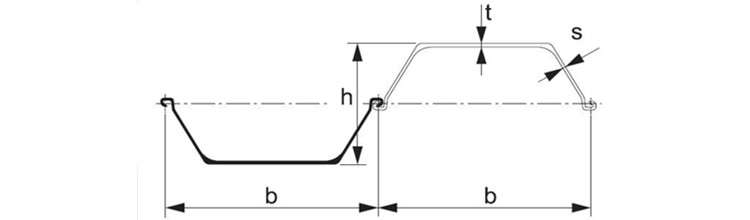

b | h | t | s | |||||
mm | mm | mm | mm | kg/m | kg/m2 | cm4/m | cm3/m | |
PU 6 | 600 | 226 | 7.5 | 6.4 | 45.6 | 76 | 6780 | 600 |
PU 7 | 600 | 226 | 8.5 | 7.1 | 49.9 | 83.1 | 7570 | 670 |
PU 8 | 600 | 280 | 8.0 | 8.0 | 54.5 | 90.9 | 11620 | 830 |
PU 9 | 600 | 280 | 9.0 | 8.7 | 58.8 | 98.0 | 12830 | 915 |
PU 11 | 600 | 360 | 8.8 | 8.4 | 61.8 | 103.0 | 19760 | 1095 |
PU 16 | 600 | 380 | 12.0 | 9.0 | 74.7 | 124.0 | 30400 | 1600 |
PU 20 | 600 | 430 | 12.4 | 10.0 | 84.3 | 140.5 | 43000 | 2000 |
PU 25 | 600 | 452 | 14.2 | 10.0 | 93.6 | 156.0 | 56490 | 2500 |
L2S | 500 | 340 | 12.3 | 9 | 69.7 | 139.4 | 27200 | 1600 |
L3S | 500 | 400 | 14.1 | 10 | 78.9 | 157.8 | 40010 | 2000 |
L4S | 500 | 440 | 15.5 | 10 | 86.2 | 172.0 | 55010 | 2500 |
L5S | 500 | 450 | 20.6 | 11.5 | 106.0 | 212.0 | 72000 | 3200 |
JSP2 | 400 | 200 | 10.5 | 0 | 48 | 120.0 | 8740 | 874 |
JSP3 | 400 | 250 | 13.0 | 0 | 60.0 | 150.0 | 16800 | 1340 |
JSP4 | 400 | 170 | 15.5 | 0 | 76.1 | 190.0 | 38600 | 2270 |
GU12-500 | 500 | 340 | 9 | 8.5 | 56.6 | 113.2 | 19640 | 1155 |
GU13-500 | 500 | 340 | 10.0 | 9.0 | 60.8 | 121.7 | 21390 | 1260 |
GU15-500 | 500 | 340 | 12.0 | 10.0 | 69.3 | 138.6 | 24810 | 1460 |
PU6R | 600 | 280 | 6.0 | 6.0 | 42.2 | 70.0 | 8940 | 640 |
PU7R | 600 | 280 | 6.5 | 6.3 | 44.3 | 74.0 | 9580 | 685 |
PU8R | 600 | 280 | 7.5 | 6.9 | 48.7 | 81.0 | 10830 | 775 |
PU9R | 600 | 360 | 7.0 | 6.4 | 49.5 | 82.0 | 16930 | 940 |
PU10R | 600 | 360 | 8.0 | 7.0 | 53.8 | 90.0 | 18960 | 1055 |
PU11R | 600 | 360 | 9.0 | 7.6 | 58.1 | 97.0 | 20960 | 1165 |
PU13R | 675 | 400 | 10.0 | 7.4 | 65.6 | 97.0 | 25690 | 1285 |
PU14R | 675 | 400 | 11.0 | 8.0 | 70.5 | 104.0 | 28000 | 1400 |
PU15R | 675 | 400 | 12.0 | 8.6 | 75.4 | 112.0 | 30290 | 1515 |
