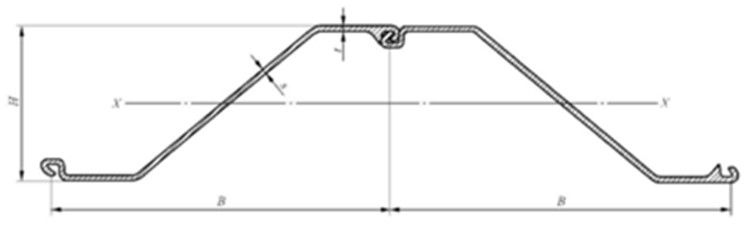

HRSP-Z steel sheet piles are the most commonly used material for sheet pile walls due to their inherent strength, light weight, and long service life. Sheet piles are available in a variety of standard cross-sections.
Specifications
Section | Dimensions | sectional | Mass | Moment of inertia | Modulus of Section | ||||
Width | Height | Thickness | Per pile | Wall | |||||
B | H | t | s | ||||||
mm | mm | mm | cm2/m | kg/m | kg/m2 | cm4/m | cm3/m | ||
HRSP-Z-1100 | 575 | 260 | 8.8 | - | 128.7 | 58.1 | 101.0 | 14300 | 1100 |
HRSP-Z-1250 | 575 | 260 | 10.8 | - | 150.3 | 67.9 | 118.1 | 16250 | 1250 |
HRSP-Z-1600 | 575 | 350 | 9.2 | - | 136.3 | 61.5 | 107.0 | 28000 | 1600 |
HRSP-Z-4595 | 580 | 481 | 18.0 | 14.0 | 291.2 | 132.6 | 228.6 | 110450 | 4595 |
HRSP-Z-4800 | 580 | 482 | 19.0 | 15.0 | 306.5 | 139.6 | 240.6 | 115670 | 4800 |
HRSP-Z-5015 | 580 | 483 | 20.0 | 16.0 | 322.2 | 146.7 | 252.9 | 121060 | 5015 |
HRSP-Z-1800 | 630 | 380 | 9.5 | 9.5 | 150.4 | 74.4 | 118.1 | 34200 | 1800 |
HRSP-Z-1870 | 630 | 381 | 10.0 | 10.0 | 157.2 | 77.8 | 123.4 | 35540 | 1870 |
HRSP-Z-2600 | 630 | 427 | 13.0 | 12.2 | 197.8 | 97.8 | 155.2 | 55510 | 2600 |
HRSP-Z-1205 | 700 | 314 | 8.5 | 8.5 | 123.3 | 67.7 | 96.7 | 18880 | 1205 |
HRSP-Z-1305 | 700 | 315 | 9.5 | 9.5 | 134.7 | 74.0 | 105.7 | 20540 | 1305 |
HRSP-Z-1355 | 700 | 316 | 10.0 | 10.0 | 140.4 | 77.2 | 110.2 | 21370 | 1355 |
HRSP-Z-1405 | 700 | 316 | 10.5 | 10.5 | 146.1 | 80.3 | 114.7 | 22190 | 1405 |
HRSP-Z-1730 | 700 | 420 | 8.5 | 8.5 | 133.0 | 73.1 | 104.4 | 36230 | 1730 |
HRSP-Z-1795 | 700 | 420 | 9.1 | 9.0 | 139.1 | 76.5 | 109.2 | 37745 | 1795 |
HRSP-Z-1800 | 700 | 420 | 9.0 | 9.0 | 139.2 | 76.5 | 109.3 | 37800 | 1800 |
HRSP-Z-1870 | 700 | 420 | 9.6 | 9.5 | 145.4 | 79.9 | 114.2 | 39322 | 1870 |
HRSP-Z-1940 | 700 | 421 | 10.1 | 10.0 | 151.7 | 83.4 | 119.1 | 40895 | 1940 |
HRSP-Z-2015 | 700 | 422 | 10.6 | 10.5 | 158.0 | 86.8 | 124.0 | 42470 | 2015 |
HRSP-Z-2430 | 700 | 459 | 11.2 | 11.2 | 174.1 | 95.7 | 136.7 | 55820 | 2430 |
HRSP-Z-2435 | 700 | 459 | 11.3 | 11.2 | 174.4 | 95.8 | 136.9 | 55945 | 2435 |
HRSP-Z-2600 | 700 | 460 | 12.3 | 12.2 | 187.4 | 103.0 | 147.1 | 59840 | 2600 |
HRSP-Z-2675 | 700 | 461 | 12.8 | 12.7 | 193.6 | 106.4 | 152.0 | 61640 | 2675 |
HRSP-Z-2760 | 700 | 461 | 13.2 | 13.2 | 200.2 | 110.0 | 157.2 | 63620 | 2760 |
HRSP-Z-3590 | 700 | 499 | 15.0 | 11.2 | 215.9 | 118.6 | 169.5 | 89610 | 3590 |
HRSP-Z-3595 | 700 | 499 | 15.1 | 11.2 | 216.1 | 118.8 | 169.6 | 89750 | 3595 |
HRSP-Z-4205 | 700 | 499 | 18.0 | 14.0 | 258.7 | 142.1 | 203.1 | 104930 | 4205 |
HRSP-Z-3795 | 700 | 500 | 16.0 | 12.2 | 230.0 | 126.4 | 180.6 | 94840 | 3795 |
HRSP-Z-4405 | 700 | 500 | 19.0 | 15.0 | 272.8 | 149.9 | 214.2 | 110150 | 4405 |
HRSP-Z-3995 | 700 | 501 | 17.0 | 13.2 | 244.2 | 134.2 | 191.7 | 100080 | 3995 |
Section | Dimensions | sectional | Mass | Moment of inertia | Modulus of Section | ||||
Width | Height | Thickness | Per pile | Wall | |||||
w | h | t | s | ||||||
mm | mm | mm | cm2/m | kg/m | kg/m2 | cm4/m | cm3/m | ||
HRSP-Z-4000 | 700 | 501 | 17.1 | 13.2 | 244.4 | 134.3 | 191.8 | 100220 | 4000 |
HRSP-Z-4605 | 700 | 501 | 20.0 | 16.0 | 287.0 | 157.7 | 225.3 | 115370 | 4605 |
HRSP-Z-4755 | 700 | 503 | 22.0 | 15.0 | 288.4 | 158.5 | 226.4 | 119650 | 4755 |
HRSP-Z-4955 | 700 | 504 | 23.0 | 16.0 | 302.6 | 166.3 | 237.5 | 124890 | 4.955 |
HRSP-Z-5155 | 700 | 505 | 24.0 | 17.0 | 316.8 | 174.1 | 248.7 | 130140 | 5155 |
HRSP-Z-2810 | 750 | 509 | 12.0 | 10.0 | 171.2 | 100.8 | 134.4 | 71540 | 2810 |
HRSP-Z-3005 | 750 | 510 | 13.0 | 11.0 | 184.7 | 108.8 | 145.0 | 76670 | 3005 |
HRSP-Z-3200 | 750 | 511 | 14.0 | 12.0 | 198.3 | 116.7 | 155.6 | 81800 | 3200 |
HRSP-Z-1245 | 770 | 344 | 8.5 | 8.5 | 120.1 | 72.6 | 94.3 | 21430 | 1245 |
HRSP-Z-1250 | 770 | 343 | 8.6 | 8.5 | 132.8 | 72.8 | 104.0 | 21495 | 1250 |
HRSP-Z-1300 | 770 | 344 | 9.0 | 9.0 | 125.8 | 76.1 | 98.8 | 22360 | 1300 |
HRSP-Z-1305 | 770 | 344 | 9.1 | 9.0 | 139.1 | 76.2 | 108.9 | 22433 | 1305 |
HRSP-Z-1355 | 770 | 344 | 9.6 | 9.5 | 145.4 | 79.6 | 113.8 | 23370 | 1355 |
HRSP-Z-1405 | 770 | 345 | 10.0 | 10.0 | 137.2 | 82.9 | 107.7 | 24240 | 1405 |
HRSP-Z-1840 | 800 | 449 | 8.5 | 8.5 | 128.6 | 80.7 | 100.9 | 41320 | 1840 |
HRSP-Z-2000 | 800 | 450 | 9.5 | 9.5 | 141.0 | 88.6 | 110.7 | 45050 | 2000 |
HRSP-Z-2165 | 800 | 451 | 10.5 | 10.5 | 153.5 | 96.4 | 120.5 | 48790 | 2165 |
HRSP-Z-2330 | 800 | 474 | 11.5 | 9.0 | 150.6 | 94.6 | 118.2 | 55260 | 2330 |
HRSP-Z-2500 | 800 | 475 | 12.5 | 10.0 | 163.3 | 102.6 | 128.2 | 59410 | 2500 |
HRSP-Z-2670 | 800 | 476 | 13.5 | 11.0 | 176.0 | 110.5 | 138.1 | 63570 | 2670 |
