Long-term field observations of HRSP-U steel sheet piles have shown that, if properly designed, they can have a very long service life. Permanent installations should allow for cathodic protection in the event of excessive corrosion.
Specifications

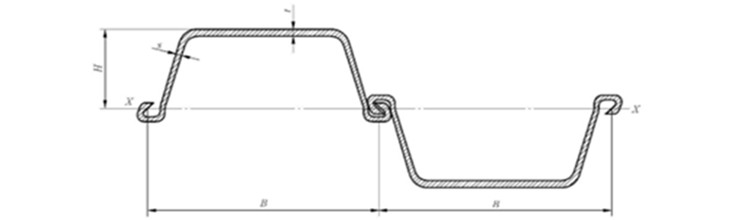

Section | Dimensions | sectional | Mass | Moment of inertia | Modulus of Section | ||||
Width | Height | Thickness | Per pile | Wall | |||||
B | H | t | s | ||||||
mm | mm | mm | cm2/m | kg/m | kg/m2 | cm4/m | cm3/m | ||
HRSP-U-530 | 400 | 85 | 8.0 | - | 113.0 | 35.5 | 88.7 | 4500 | 530 |
HRSP-U-870 | 400 | 100 | 10.5 | - | 153.0 | 48.0 | 120.1 | 8740 | 870 |
HRSP-U-1340 | 400 | 125 | 13.0 | - | 191.0 | 60.0 | 149.9 | 16800 | 1340 |
HRSP-U-1560 | 400 | 145 | 12.7 | 9.4 | 197.3 | 62.0 | 155.0 | 22580 | 1560 |
HRSP-U-1785 | 400 | 146 | 15.0 | 9.7 | 220.8 | 69.3 | 173.3 | 26090 | 1785 |
HRSP-U-1520 | 400 | 150 | 13.1 | - | 186.0 | 58.4 | 146.0 | 22510 | 1520 |
HRSP-U-2270 | 400 | 170 | 15.5 | - | 242.5 | 76.1 | 190.4 | 38600 | 2270 |
HRSP-U-3150 | 500 | 200 | 24.3 | - | 267.6 | 105.0 | 210.1 | 63000 | 3150 |
HRSP-U-2000 | 500 | 210 | 11.5 | - | 197.4 | 77.5 | 155.0 | 42000 | 2.000 |
HRSP-U-2500 | 500 | 210 | 15.6 | - | 222.0 | 87.5 | 175.0 | 52500 | 2500 |
HRSP-U-3040 | 500 | 210 | 20.0 | - | 262.0 | 103.0 | 206.0 | 63840 | 3040 |
HRSP-U-3820 | 500 | 225 | 27.6 | - | 306.0 | 120.1 | 240.2 | 86000 | 3820 |
Section | Dimensions | sectional | Mass | Moment of inertia | Modulus of Section | ||||
Width | Height | Thickness | Per pile | Wall | |||||
w | h | t | s | ||||||
mm | mm | mm | cm2/m | kg/m | kg/m2 | cm4/m | cm3/m | ||
HRSP-U-1000 | 600 | 130 | 10.3 | - | 131.2 | 61.8 | 103.0 | 13000 | 1000 |
HRSP-U-735 | 600 | 155 | 7.5 | - | 99.6 | 46.9 | 78.2 | 11437 | 735 |
HRSP-U-835 | 600 | 155 | 8.2 | - | 115.0 | 54.1 | 90.2 | 12960 | 835 |
HRSP-U-625 | 600 | 154.5 | 6.0 | 6.0 | 89.0 | 41.9 | 69.9 | 9670 | 625 |
HRSP-U-675 | 600 | 155 | 6.5 | 6.4 | 93.7 | 44.1 | 73.5 | 10450 | 675 |
HRSP-U-1165 | 600 | 155 | 9.7 | - | 138.1 | 65.0 | 108.4 | 18100 | 1165 |
HRSP-U-740 | 600 | 155.5 | 7.2 | 6.9 | 100.3 | 46.3 | 77.1 | 11540 | 740 |
HRSP-U-745 | 600 | 156 | 7.3 | 6.9 | 100.7 | 47.4 | 79.1 | 11620 | 745 |
HRSP-U-770 | 600 | 156 | 7.5 | 7.1 | 103.1 | 48.5 | 80.9 | 12010 | 770 |
HRSP-U-820 | 600 | 156.5 | 8.0 | 7.5 | 107.8 | 50.8 | 84.6 | 12800 | 820 |
HRSP-U-995 | 600 | 158 | 9.0 | 6.8 | 118.5 | 55.8 | 93.0 | 15700 | 995 |
HRSP-U-1095 | 600 | 159 | 10.0 | 7.4 | 127.8 | 60.2 | 100.3 | 17450 | 1095 |
HRSP-U-1200 | 600 | 160 | 11.0 | 8.0 | 137.2 | 64.6 | 107.7 | 19220 | 1200 |
HRSP-U-1200 | 600 | 180 | 9.8 | 9.0 | 140.0 | 66.1 | 110.1 | 21600 | 1200 |
HRSP-U-1255 | 600 | 180 | 10.0 | - | 147.8 | 69.6 | 116.0 | 22580 | 1255 |
HRSP-U-1260 | 600 | 180 | 10.0 | 10.0 | 151.0 | 71.0 | 118.3 | 22660 | 1260 |
HRSP-U-1800 | 600 | 180 | 13.4 | - | 173.2 | 81.6 | 136.0 | 32400 | 1800 |
HRSP-U-1600 | 600 | 190 | 10 | - | 156.1 | 73.5 | 122.6 | 30400 | 1600 |
HRSP-U-1270 | 600 | 209 | 9.0 | 7.4 | 127.2 | 59.9 | 99.8 | 26590 | 1270 |
HRSP-U-1400 | 600 | 210 | 10.0 | 8.0 | 136.5 | 64.3 | 107.1 | 29410 | 1400 |
HRSP-U-2020 | 600 | 210 | 12.5 | - | 177.5 | 83.6 | 139.3 | 42426 | 2020 |
HRSP-U-2700 | 600 | 210 | 18.0 | - | 225.5 | 106.2 | 177.0 | 56700 | 2700 |
HRSP-U-1530 | 600 | 211 | 11.0 | 8.6 | 145.9 | 68.7 | 114.5 | 32260 | 1530 |
HRSP-U-1670 | 600 | 215 | 10.2 | 8.4 | 154.2 | 72.6 | 121.0 | 35950 | 1670 |
HRSP-U-1800 | 600 | 215 | 11.2 | 9.0 | 163.3 | 76.9 | 128.2 | 38650 | 1800 |
HRSP-U-1920 | 600 | 215 | 12.2 | 9.5 | 172.3 | 81.1 | 135.2 | 41320 | 1920 |
HRSP-U-2410 | 600 | 217.5 | 13.9 | - | 200.6 | 92.2 | 153.7 | 52420 | 2410 |
HRSP-U-2060 | 600 | 225 | 11.1 | 9.0 | 173.9 | 81.9 | 136.5 | 46380 | 2060 |
HRSP-U-2200 | 600 | 225 | 12.1 | 9.5 | 182.9 | 86.1 | 143.6 | 49460 | 2200 |
Section | Dimensions | sectional | Mass | Moment of inertia | Modulus of Section | ||||
Width | Height | Thickness | Per pile | Wall | |||||
w | h | t | s | ||||||
mm | mm | mm | cm2/m | kg/m | kg/m2 | cm4/m | cm3/m | ||
HRSP-U-2335 | 600 | 225 | 13.1 | 10.0 | 192.0 | 90.4 | 150.7 | 52510 | 2335 |
HRSP-U-2680 | 600 | 226 | 14.2 | 9.7 | 206.8 | 97.4 | 162.3 | 60580 | 2680 |
HRSP-U-2840 | 600 | 227 | 15.2 | 10.1 | 216.1 | 101.8 | 169.6 | 64460 | 2840 |
HRSP-U-3065 | 600 | 226 | 18.5 | 10.6 | 233.3 | 109.9 | 183.2 | 69210 | 3065 |
HRSP-U-3200 | 600 | 226 | 19.0 | - | 241.7 | 114.0 | 190.0 | 72320 | 3200 |
HRSP-U-3200 | 600 | 226 | 19.5 | 11.0 | 242.3 | 114.1 | 190.2 | 72320 | 3200 |
HRSP-U-3340 | 600 | 226 | 20.5 | 11.4 | 251.3 | 118.4 | 197.3 | 75410 | 3340 |
HRSP-U-2700 | 600 | 228 | 15.8 | - | 206.1 | 97.1 | 161.8 | 61560 | 2700 |
HRSP-U-3000 | 600 | 228 | 16.2 | 10.5 | 225.6 | 106.2 | 177.1 | 68380 | 3000 |
HRSP-U-1150 | 700 | 200 | 9.0 | - | 120.0 | 65.1 | 93.0 | 23000 | 1150 |
HRSP-U-1340 | 700 | 200 | 10.0 | - | 137.6 | 75.6 | 108.0 | 26800 | 1340 |
HRSP-U-1535 | 700 | 220 | 9.7 | - | 140.9 | 77.4 | 110.6 | 33770 | 1535 |
HRSP-U-1405 | 750 | 204 | 10.0 | 8.3 | 132.3 | 77.9 | 103.8 | 28680 | 1405 |
HRSP-U-1600 | 750 | 205.5 | 11.5 | 9.3 | 146.5 | 86.3 | 115.0 | 32850 | 1600 |
HRSP-U-1780 | 750 | 220.5 | 10.5 | 9.1 | 150.3 | 88.5 | 118.0 | 39300 | 1780 |
HRSP-U-2000 | 750 | 222 | 12.0 | 10.0 | 164.6 | 96.9 | 129.2 | 44440 | 2000 |
HRSP-U-2270 | 750 | 223.5 | 13.0 | 9.5 | 173.4 | 102.1 | 136.1 | 50700 | 2270 |
HRSP-U-2500 | 750 | 225 | 14.5 | 10.2 | 187.5 | 110.4 | 147.2 | 56240 | 2500 |
