What are SCZ and SKZ Steel Sheet Piles?

May 20, 2005
120 Views

SKZ sheet piles have a larger cross-sectional modulus (W = 600-3200 cm³/m) and are suitable for small and medium-sized projects with low soil (or water) pressure, especially for temporary projects. Depending on the geological conditions, vibratory hammers of appropriate power are typically used for construction. With the continuous advancement of smelting technology since 2002, the width of a single SCZ sheet pile has reached 750mm, speeding up construction.

Skyline steel sheet piles offer the following advantages:

1. This product is wider than conventional hot-rolled steel sheet piles, reducing the time required for hoisting and sinking.

2. The increased width reduces the number of interlocks per linear meter of wall, directly improving the wall's water-stopping performance and reducing construction costs.

3. The increased height and high-grade use of steel sheet piles ensure excellent static performance and reduce the weight per linear meter of wall.

4. Uniform profile thickness ensures excellent sinking stiffness.

5. High-strength steel and advanced production equipment guarantee the performance of SKZ steel sheet piles.

6. A specialized interlocking structure designed using finite element analysis software ensures the reusability of SCZ steel sheet piles.

7. The symmetrical structure and available rotation angles facilitate correction of construction deviations, resulting in a lower steel sheet pile price.

Specifications

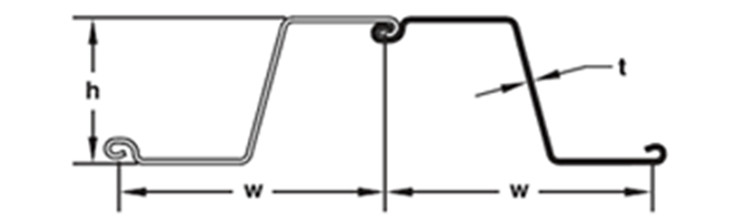

SECTION	Width (w) in (mm)	Height (h) in (mm)	Thickness t) in (mm)	Cross Sectional Area in²/t (cm²/m)	WEIGHT		SECTION MODULUS		Moment of Inertia in⁴/t (cm²/m)	COATING AREA
SECTION	Width (w) in (mm)	Height (h) in (mm)	Thickness t) in (mm)	Cross Sectional Area in²/t (cm²/m)	Pile Ib/k (kg/m)	Wall Ib/t² (kg/m²)	Elastic in³/t (cm³/m)	Plastic in/A (cm³/m)	Moment of Inertia in⁴/t (cm²/m)	Both Sides t³/m (m²/m)	Coating Area t/t² (m²/m²)
SCZ 14	28.507239	10.00 254.0	0.250 6.4	4.188848	33.81 S0.31	14.23 69.50	14.36772	16.32 877.4	71.829808	6.10186	1.28 1.28
SCZ 16	28.50 723.9	10.00 254.0	0.27670	4.62 97.79	37.37 55.61	15.73 76.82	15.75847	17.97 965.9	78.7310751	6.10 1.86	1.28 1.28
SCZ17N	28.50 723.9	10.00 254.0	0.295 7.5	4,95 104.78	40.03 59.58	16.86 85.79	16.87907	19.211033	84.3511519	6.10 1.86	1.28 1.28
SCZ 18N	28.50 723.9	10.00 254.0	0.317 8.1	5.31 112.39	42.94 63.91	18.08 85.79	18.10973	20.611108	90.4812356	6.10 1.86	1.28 1.28
SCZ 21N	28.507239	10.002840	0.375 9.5	6.29 133.06	50.847566	21.41 85.79	21.431152	24.401312	107.1314629	6.10186	1.28 1.28

SKZ 20	28.50 723.9	16.004054	0.315 8.0	6.00 136.20	48.24 71.79	20.31 99.17	31.691704	36.66 1970.97	253.5134618	7.60 2.32	1.60 1.60
SKZ 22	28.50 723.9	16.00 405.4	0.335 8.5	6.30 145.40	51.30 76.34	21.60 105.46	33.431797	38.94 2093.55	267.4036515	7.60232	1.60 1.60
SKZ 23	28.50 723.9	16.00 405.4	0.354 9.0	6.70 16250	54.20 80.66	22.82 111.42	35.611915	41.12 2210.75	284.9038905	7.60 2.32	1.60 1.60
SKZ 24	28.50 723.9	16.004054	0.375 9.5	7.10 179.50	57.43 85.47	24.18 118.06	37.732028	43.52 2339.78	301.8041213	7.60 2.32	1.60 1.60
SKZ 25	28.50 723.9	16.004054	0.399 10.1	7.60 188.00	61.10 90.93	25.73 125.61	40.142158	46.24 2486.02	321.1243851	7.60232	1.60 1.60
SKZ 31	28.50 723.9	18.00 457.2	0.450 11.4	9.07 192.04	73.82 109.85	31.08 151.75	51.562772	60.51 3253.29	464.0563369	8.06246	1.70 1.70
SKZ 33	28.50 723.9	18.00 457.2	0.475 12.1	9.40 198.97	77.64 115.54	32.69 159.61	54.892951	63.57 3417.68	494.0367462	8.06 2.46	1.70 1.70
SKZ 34	28.50 723.9	18.00 457.2	0.500 12.7	9.89 209.25	81.42 121.17	34.28 167.38	57.623098	66.86 3594.60	518.6270821	8.06 2.46	1.70 1.70
SKZ 36	28.50 723.9	18.00 457.2	0.535 13.6	10.78 228.10	86.81 129.19	36.55 178.46	60.713264	71.58 3848.17	546.4374619	8.06246	1.70 1.70
SKZ 38	28.50 723.9	18.00 457.2	0.550 14.0	11.07 234.42	88.95 132.37	37.45 182.85	62.323350	73.52 3952.44	560.8576588	8.06246	1.70 1.70
