What are PAZ Steel Sheet Piles?

Jul 20, 2005
115 Views

Z-shaped steel sheet piles have a large section modulus (W = 1200-5015 cm³/m) and are suitable for large, medium, and small projects subjected to high soil (or water) pressure. Due to the characteristics of steel sheet piles, they are typically driven in groups of two. While the construction process is somewhat lengthy and technically challenging, the width of a two-pile group can reach 1160-1400 mm, approximately two to three times the width of a single U-shaped steel sheet pile. This improves overall construction efficiency. Therefore, steel sheet piles are widely used in many wharf projects in my country that require limited land area. The construction method typically involves "vibration piling followed by hammering."

The most fundamental mechanical properties of steel sheet piles are web continuity and symmetrical distribution of the joints at predetermined locations on both sides of the neutral axis. These two characteristics positively impact the section modulus of cold-rolled steel sheet piles.

Z-shaped steel sheet piles have the following advantages:

1. Flexible design with a high section modulus and mass ratio;

2. Increased section moment of inertia improves the overall bending stiffness of the pile wall, effectively reducing displacement and deformation;

3. The use of high-strength steel significantly enhances the bending strength of the steel sheet pile wall;

4. The increased section width reduces the amount of interlocking in the steel sheet pile wall, directly improving the water-stopping performance of the steel sheet pile wall.

Specifications

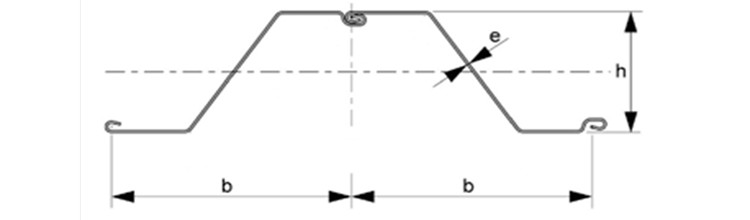

Section	Dimensions			Mass			Per metre of wall		Coating area
	Thick- ness	System width single	Height	Single pile	Wall	Section modulus	Moment of inertia	Sectional area	Single pile	Double pile
	e	b	h	Single pile	Wall	Section modulus	Moment of inertia	Sectional area	Single pile	Double pile
	mm	mm	mm	kg/m	kg/m2	cm3	cm4	cm2	m2/m	m2/m
PAZ 43 50	5.0	770	213	38.2	49.6	448	4 770	63.2	0.91	1.77
PAZ 43 60	6.0	770	214	45.8	59.4	534	5 720	75.7	0.91	1.77
PAZ 43 70	7.0	770	215	53.3	69.2	619	6 660	88.2	0.91	1.77
PAZ 44 50	5.0	725	269	37.7	52.0	612	8 240	66.2	0.91	1.77
PAZ 44 60	6.0	725	270	45.1	62.2	730	9 890	79.3	0.91	1.77
PAZ 44 70	7.0	725	271	52.4	72.3	846	11 535	92.1	0.91	1.77
PAZ 45 50	5.0	676	312	37.7	55.8	772	12 065	71.0	0.91	1.77
PAZ 45 60	6.0	676	313	45.1	66.7	922	14 444	85.0	0.91	1.77
PAZ 45 70	7.0	676	314	52.4	77.5	1 069	16 815	98.8	0.91	1.77
PAZ 46 50	5.0	621	347	37.7	60.7	940	16 318	77.3	0.91	1.77
PAZ 46 60	6.0	621	348	45.1	72.6	1 122	19 544	92.5	0.91	1.77
PAZ 46 70	7.0	621	349	52.4	84.4	1 302	22 756	107.5	0.91	1.77
PAZ 53 60	6.0	857	300	54.3	63.3	766	11 502	80.7	1.04	2.05
PAZ 53 70	7.0	857	301	63.2	73.7	888	13 376	93.9	1.04	2.05
PAZ 53 80	8.0	857	302	72.1	84.0	1009	15 249	107.1	1.04	2.05
PAZ 53 90	9.0	857	303	81.0	94.4	1131	17 123	120.3	1.04	2.05
PAZ 54 60	6.0	807	351	53.9	66.8	968	16 989	85.1	1.04	2.05
PAZ 54 70	7.0	807	352	62.6	77.6	1123	19 774	98.9	1.04	2.05
PAZ 54 80	8.0	807	353	71.4	88.4	1277	22 546	112.7	1.04	2.05
PAZ 54 90	9.0	807	354	80.2	99.3	1431	25 318	126.5	1.04	2.05
PAZ 54 100	10.0	808	355	89.2	110.3	1570	27 850	140.5	1.04	2.05
PAZ 55 60	6.0	743	407	53.9	72.5	1233	25 074	92.4	1.04	2.05
PAZ 55 70	7.0	743	408	62.6	84.3	1432	29 179	107.4	1.04	2.05
PAZ 55 80	8.0	744	409	71.4	96.0	1628	33 263	122.3	1.04	2.05
PAZ 55 90	9.0	744	410	80.2	107.8	1825	37 387	137.3	1.04	2.05
PAZ 55 100	10.0	745	411	89.2	119.8	2000	41 060	152.6	1.04	2.05
PAZ 56 60	6.0	671	451	53.9	80.3	1525	34 340	102.3	1.04	2.05
PAZ 56 70	7.0	671	452	62.6	93.3	1770	39 954	118.9	1.04	2.05
PAZ 56 80	8.0	672	453	71.4	106.3	2013	45 537	135.4	1.04	2.05
PAZ 56 90	9.0	672	454	80.2	119.3	2259	51 180	151.9	1.04	2.05
PAZ 56 100	10.0	673	455	89.2	132.5	2470	56 200	168.8	1.04	2.05
