What are MSZ Series Z-Series Cold-Formed Steel Sheet Piles?

May 20, 2017
119 Views

Z-Series cold-formed steel sheet piles should be angled so that the MSZ16-312 and MSZ16-340 drains are directed away from the slab and extend to the intercepting longitudinal drains located outside the reinforced area. Scaffolding legs should be supported on a base plate resting on an MSZ16-406 base beam or other solid foundation (e.g., concrete). Materials used should provide good drainage and meet design requirements. Backfill behind the silo should not precede the backfill of the silo. Moving a rolling scaffold with personnel on board is prohibited.

Mega Zee 16 steel sheet piles should be used. Soil behind the MSZ16-406 wall, MSZ16-350, or MSZ16-375 slopes should be benched as needed to ensure safe and efficient backfill and compaction. Scaffolding exceeding 125 feet in height should be designed and erected under the supervision of an engineer qualified in this field. Contech Marine Bin-Walls offer cost-effective solutions for many diverse marine applications, including coastal protection, primary and secondary breakwaters, piers, and docks. For MSE walls using metal soil reinforcement, supported on slopes on chemically de-iced roads during winter, measures should be taken to prevent runoff from reaching the soil reinforcement on the back of the panels at the foot of the slope.

Casters should be designed to comply with MSZ16-312 standards and be capable of supporting the applied loads. The steel-soil design concept provides a unique marine structure with the structural strength and flexibility to withstand freeze-thaw conditions and the effects of ice.

Specifications

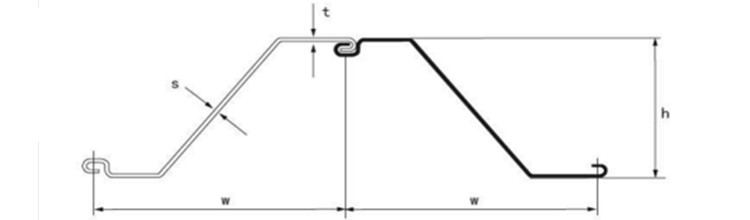

Section	Dimensions			Mass		Moment of inertia	Modulus of section
	Width	Height	Thickness	Pile	Wall	Moment of inertia	Modulus of section
	w	h	t/s
	In	In	In	Lbs/ft	Lbs/ft2	In4/ft	In3/ft
MSZ10-312	38.82	2.19	0.312	49.72	15.37	1.3	0.67
MSZ10-340	38.82	2.19	0.340	54.10	16.72	1.41	0.72
MSZ10-350	38.82	2.19	0.350	55.69	17.22	1.45	0.74
MSZ10-375	38.82	2.19	0.373	59.67	18.45	1.56	0.79
MSZ10-406	38.82	2.19	0.406	64.60	19.97	1.73	0.86
MSZ11-312	38.55	3.53	0.312	49.72	15.48	6.83	3.76
MSZ11-340	38.55	3.53	0.340	54.1	16.84	7.43	4.06
MSZ11-350	38.55	3.53	0.350	55.69	17.34	7.65	4.17
MSZ11-375	38.55	3.53	0.375	59.67	18.58	8.21	4.44
MSZ11-406	38.55	3.53	0.406	64.6	20.11	8.92	4.79
MSZ12-312	37.72	6.64	0.312	49.72	8.76	29.29	8.76
MSZ12-340	37.72	6.64	0.340	54.1	9.50	31.87	9.50
MSZ12-350	37.72	6.64	0.350	55.69	9.77	32.84	9.77
MSZ12-375	37.72	6.64	0.375	59.67	10.43	35.17	10.43
MSZ12-406	37.72	6.64	0.406	64.6	11.27	38.16	11.27
MSZ13-312	36.38	9.58	0.312	49.72	14.13	67.86	14.13
MSZ13-340	36.38	9.58	0.340	54.10	15.32	73.79	15.32
MSZ13-350	36.38	9.58	0.350	55.69	15.74	75.93	15.74
MSZ13-375	36.38	9.58	0.375	50.67	16.81	81.34	16.81
MSZ13-406	36.38	9.58	0.406	64.6	18.18	88.27	18.18
MSZ14-312	34.56	12.24	0.312	12.27	19.62	120.97	19.62
MSZ14-340	34.56	12.24	0.340	18.89	21.29	131.28	21.29
MSZ14-350	34.56	12.24	0.350	19.34	21.91	135.50	21.91
MSZ14-375	34.56	12.24	0.375	20.72	23.38	144.93	23.38
MSZ14-406	34.56	12.24	0.406	22.43	25.29	157.25	25.29
MSZ15-312	32.79	14.11	0.312	49.72	18.20	172.66	24.24
MSZ15-340	32.79	14.11	0.340	54.10	19.80	187.52	26.27
MSZ15-350	32.79	14.11	0.350	55.69	20.38	193.26	27.06
MSZ15-375	32.79	14.11	0.375	59.67	21.84	207.03	28.91
MSZ15-406	32.79	14.11	0.406	64.60	23.64	224.46	31.27
MSZ16-312	31.05	15.54	0.312	49.72	19.22	223.36	28.45
MSZ16-340	31.05	15.54	0.340	54.10	20.91	242.98	30.88
MSZ16-350	31.05	15.54	0.350	55.69	21.53	249.85	31.74
MSZ16-375	31.05	15.54	0.375	59.67	23.06	267.87	33.95
MSZ16-406	31.05	15.54	0.406	64.60	24.97	290.74	36.75
MSZ17-312	29.71	16.43	0.312	49.72	20.09	262.34	31.60
MSZ17-340	29.71	16.43	0.340	54.1	21.86	285.10	34.27
MSZ17-350	29.71	16.43	0.350	55.69	22.50	293.36	35.25
MSZ17-575	29.71	16.43	0.375	59.67	24.11	314.57	37.71
MSZ17-406	29.71	16.43	0.406	64.60	26.10	241.03	40.80
MSZ18-312	28.38	17.2	0.312	49.73	20.58	296.05	34.49
MSZ18-340	28.38	17.2	0.24	54.1	22.39	322.09	37.45
MSZ18-350	28.38	17.2	0.350	55.69	23.04	330.95	38.46
MSZ18-375	28.38	17.2	0.375	59.67	24.69	354.49	41.12
MSZ18-406	28.38	17.2	0.406	64.6	26.74	384.83	44.53
MSZ19-340	26.88	17.9	0.340	54.1	23.61	368.18	41.17
MSZ19-350	26.88	17.9	0.350	55.69	24.30	867.04	42.24
MSZ19-375	26.88	17.9	0.375	59.67	26.04	929.74	45.25
MSZ19-406	26.88	17.9	0.406	64.60	28.19	1008.15	48.97
