For sheet piles (KD500/5, D28472, KD500/6, D28473) to be provided at depths of approximately 12 to 15 meters below the still water surface, KD 500/5 and KD 500/6 will prove to be more economical than cofferdams.
KD 500/5 and KD 500/6 grooved sheet gates can be custom-made to your specifications and coated with our KD500/5-specific polymer wood coating for enhanced protection against water and other harsh environments. We can design according to your drawings or produce CAD drawings for you.
KD500/6 deep foundations may be constructed of timber, temporary or permanent steel shells, or thin or mass concrete. To select between these three types of KD 500/6 deep foundations, foundation engineers must understand the differences between them. KD 500/5 pier, pile, and caisson foundations are shown below.
Specifications

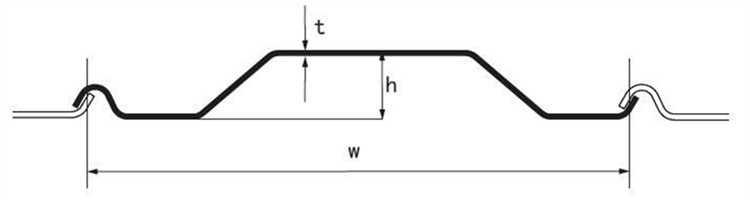

Section | reference | Dimensions | Mass | Per meter of wall | |||||
Width | Height | Thickness | Single pile | Wall | Section Modulus | Moment of inertia | |||
w | h | t | s | W | I | ||||
mm | mm | mm | mm | kg/m | kg/m2 | cm3/m | cm4/m | ||
CR430 | D22601 | 330 | 34 | 3 | 3 | 9.72 | 29.45 | 40 | 68 |
CR435 | D28130 | 330 | 34.50 | 3.5 | 3.5 | 11.34 | 34.36 | 46 | 79 |
CR440 | D12889 | 330 | 35 | 4 | 4 | 12.96 | 39.29 | 52 | 91 |
CR445 | D28233 | 330 | 35.50 | 4.5 | 4.5 | 14.53 | 44.04 | 57 | 103 |
CR450 | D22864 | 330 | 36 | 5 | 5 | 16.09 | 48.76 | 63 | 114 |
KD400/5 | D28478 | 400 | 49 | 5 | 5 | 18.52 | 46.30 | 84 | 208 |
KD400/5.5 | D28404 | 400 | 49.50 | 5.5 | 5.5 | 20.37 | 50.92 | 91 | 229 |
KD400/6 | D28384 | 400 | 50 | 6 | 6 | 22.23 | 55.57 | 99 | 250 |
KD500/5 | D28472 | 500 | 49 | 5 | 5 | 22.45 | 44.90 | 86 | 215 |
KD500/6 | D28473 | 500 | 50 | 6 | 6 | 26.94 | 53.88 | 101 | 258 |
KD600/6 | D28090 | 600 | 78 | 6 | 6 | 37.50 | 62.00 | 184 | 718 |
KD600/8 | D27909 | 600 | 80 | 8 | 8 | 50.00 | 83.00 | 237 | 947 |
KD600/9 | D62651 | 600 | 81 | 9 | 9 | 55.53 | 92.55 | 263 | 1066 |
KD750/5 | D62650 | 742 | 91 | 5 | 5 | 33.79 | 45.54 | 163 | 745 |
KD750/6 | D62634 | 742 | 92 | 6 | 6 | 40.90 | 54.66 | 194 | 893 |
KD750/6.5 | D62676 | 742 | 92.50 | 6.5 | 6.5 | 43.72 | 58.90 | 209 | 967 |
KD750/7 | D62635 | 742 | 93 | 7 | 7 | 47.03 | 63.40 | 224 | 1042 |
KD750/7.5 | D62677 | 742 | 93.50 | 7.5 | 7.5 | 50.30 | 67.80 | 239 | 1116 |
KD750/8 | D62632 | 742 | 94 | 8 | 8 | 55.56 | 72.18 | 254 | 1197 |
KD750/9 | D62685 | 742 | 95 | 9 | 9 | 60.26 | 81.21 | 283 | 1346 |
