SLU steel sheet piles feature a large cross-sectional depth and excellent static performance. Their wide cross-section ensures excellent mechanical properties.
The symmetrical shape of their individual elements makes them easy to reuse.
The steel piles can be assembled in pairs at the factory, significantly improving assembly efficiency and product life. This shape also enhances product quality and ensures excellent installation performance. SLU steel sheet piles also offer excellent corrosion resistance.
All of our steel sheet piles comply with EN10249 standards.
Specifications

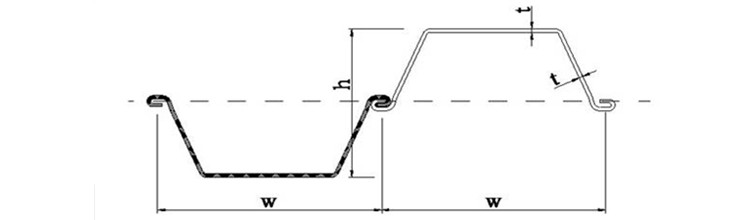

SECTION | Width | Height | Thickness | Section | Weight | Weight | Moment of | Moment of |
w | h | t | Area | perpilr | per wall | Inertia | Scetion | |
mm | mm | mm | cm2/m | kg/m | kg/m2 | cm4/m | cm3/m | |
SLU5-1 | 600 | 150 | 9.5 | 119.7 | 56.4 | 94 | 3825 | 510 |
SLU5-2 | 600 | 150 | 10 | 126.1 | 59.4 | 99 | 4050 | 540 |
SLU6-1 | 600 | 280 | 6 | 90 | 42.2 | 70 | 8940 | 640 |
SLU7-1 | 600 | 300 | 6 | 93.4 | 44 | 73 | 9585 | 690 |
SLU7-2 | 600 | 340 | 6 | 98 | 46.2 | 77 | 11525 | 745 |
SLU7-3 | 600 | 360 | 6 | 99.6 | 46.9 | 78.2 | 11360 | 740 |
